Pattern Globe Valve
XURI is a pattern globe valve manufacturer offering T-pattern, Y-pattern, and angle configurations to meet different flow resistance and installation requirements.

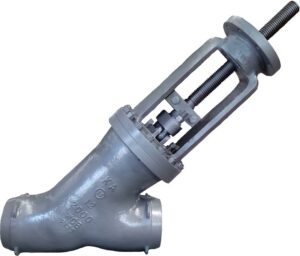

The Y-pattern design provides improved flow efficiency compared with traditional globe valves, making it suitable for high-pressure and high-flow applications. All designs feature renewable seat rings for extended service life.
Engineering Advantages:
- Available in T-pattern, Y-pattern, and angle designs
- Y-pattern for reduced flow resistance
- Renewable seat rings
- Suitable for high-pressure applications
- Optimized flow characteristics per pattern
Typical Applications
- Boiler feedpump recirculation
- Steam desuperheater isolation
- Feedwater control valve bypass
- High-pressure process drain
- Boiler startup vent valves
Technical Specifications
| Design Standard | ASME B16.34 / BS 1873 |
| Pressure Class | Class 150 - Class 2500 |
| Size Range | DN15 - DN400 (1/2" - 16") |
| Body Patterns | T-pattern, Y-pattern, Angle pattern |
| Body Materials | WCB, WC6, WC9, CF8, CF8M |
| End Connections | Flanged (RF/RTJ), Butt-weld |
| Operation | Manual, Gearbox, Pneumatic, Electric |
Standards & Certifications
- ASME B16.34 - Design standard
- BS 1873 - Globe valve design
- API 598 - Testing standard
- ISO 9001 - Quality management
Why Choose XURI
Manufacturing Capability
XURI operates professional valve manufacturing facilities with in-house casting capability and an annual production capacity of 6,000 tons.
Quality Assurance
Complete inspection process including PMI, NDT, hydrostatic testing, and dimensional inspection ensures product reliability.
Engineering Experience
Supporting severe service applications including power generation, oil and gas, chemical, and energy projects worldwide.
Global Supply
Products supplied to EPC contractors, distributors, and industrial projects across 30+ countries, with factory-direct pricing and on-time delivery.
FAQ
What pattern options are available for XURI globe valves?
XURI offers T-pattern, Y-pattern, and angle pattern globe valves to suit different flow resistance and installation requirements.
What is the advantage of a Y-pattern globe valve?
The Y-pattern design reduces flow resistance compared to traditional globe valves, making it ideal for high-pressure and high-flow applications.
