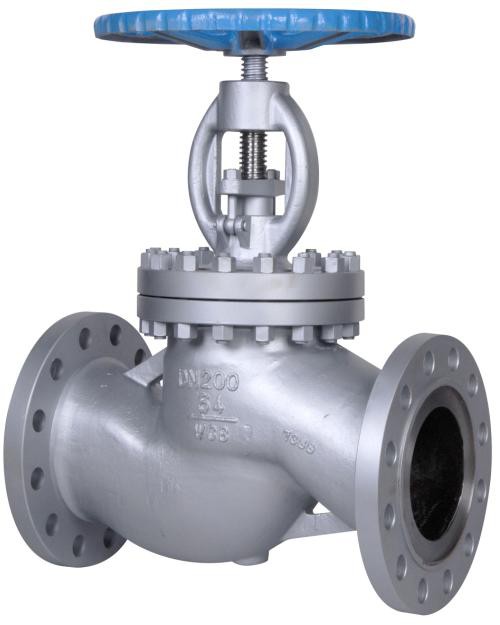

Z Type Globe Valve
Product Introduction Product DescriptionA Z body globe valve is a valve used to control the flow of fluid in pipes. It is made of high-quality metal material and is ideal for flow regulation, which is achieved by the correct tightness between the valve plate and the valve seat. A staple in thermal p
Product Introduction
Product Description
A Z body globe valve is a valve used to control the flow of fluid in pipes. It is made of high-quality metal material and is ideal for flow regulation, which is achieved by the correct tightness between the valve plate and the valve seat. A staple in thermal power plants, mineral production facilities, and photochemical plants, these shut-off valves can withstand large amounts of pressure without spilling or bursting. Globe valve straight is a type of globe valve design that is widely used due to its unique characteristics. They also have a small allowable pressure drop.
Z body globe valve belongs to straight pattern globe valve, so it is also called straight globe valve or s pattern globe valve. Bolted bonnet/pressure seal for carbon, stainless steel, duplex stainless steel, alloys and other specialty materials.

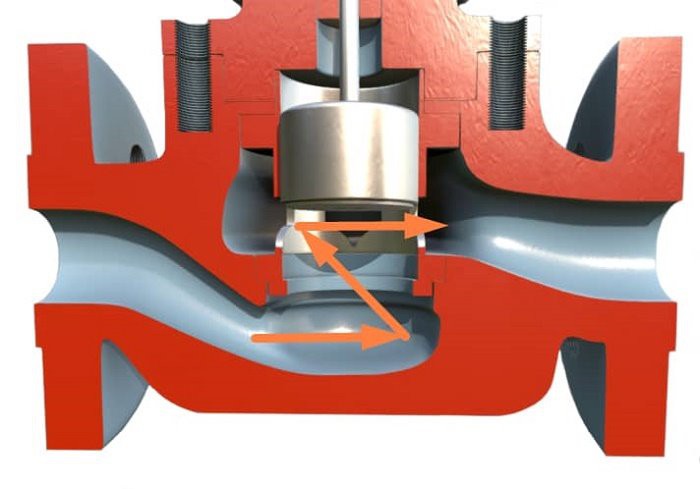

For Z body globe valve, the horizontal setting of the seat allows the stem and disc to move perpendicular to the direction of fluid flow. Due to its tortuous flow channel, this design provides the highest flow resistance of all available modes.
Advantages
It can smoothly handle a variety of fluids in pipelines, such as ordinary liquids, liquids with solid particles (gas, powder, slurries) and high-viscosity fluids. The machine has moderate to good throttling and shut-off capabilities. Also, it has a shorter stroke compared to a gate valve.
Product Information
Various valve disc forms are available
Optional extended stem design
Small opening and closing friction, long life
fire protection design
Soft and hard sealing valve seat optional
With flow throttling and adjustment functions
Reliable inner and outer leak seal
Performance parameters
Pressure class: CLASS 150~ CLASS 2500 (PN10~PN420)
Nominal diameter: 1/2″~24″ (DN15~DN600)
Temperature range: -196℃~600℃
Main material: carbon steel, stainless steel, duplex, Hastelloy, Inconel, Monel, Alloy20, Incoloy, etc.
Spool material: carbon steel, stainless steel, duplex, Hastelloy, Inconel, Monel, Alloy20, Incoloy, etc.
Seat Material: PTFE, RPTFE, PEEK, Stainless Steel, STL, etc.
Operation mode: manual, pneumatic, electric, hydraulic, etc.
Application
Service conditions: high pressure, high temperature, low temperature, erosion, corrosion, high viscosity, vacuum, no dead zone
Media type: liquid, slurry (including solid particles), gas, powder medium, high viscosity fluid
Applications: Fine Chemicals, Plastics and Polymers, General Chemicals, Petrochemicals, Nuclear Industry and Naval/Submarines, Cryogenics
FAQ
Q: What is special for XURI valves?
A: Customization all you ask, as logo casting, packaging logo painting, specially for your business.
Q: What can I get from cooperating with XURI?
A: 1. Unique valves, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
Q: Can I get a sample and how do I get it?
A: Yes, the sample is available and please tell us your requirements of the sample and we will quote it for you and help you to order it.
Product Overview - XURI Valve
This Z type globe valve provides precise flow throttling and regulation. Available in carbon steel, stainless steel, and alloy materials. Class 150-2500, sizes 1"-24". API 602 certified. Suitable for high-pressure steam, chemical processing, power generation, and general industrial applications.
ISO 9001 certified globe valve manufacturer, factory direct supply. OEM/ODM available for custom trim and materials. API 602 certified, fast delivery worldwide.
Product Features
1. Unique valves, with customized service.2. Timely production and delivery, time is money.3. Market protection service, long term business strategy. Q: Can I get a sample and how do I get it?A: Yes, the sample is available and please tell us your requirements of the sample and we will quote it for you and help you to order it.
Available Configurations
- Sizes: DN15 - DN400 (1/2" - 16")
- Pressure Ratings: Class 150 - Class 2500 (PN16 - PN420)
- Body Materials: WCB, WCC, LCB, LCC, WC6, WC9, CF8, CF8M, CF3, CF3M, A105, F22, F304, F316
- End Connections: Flanged (RF, RTJ), Butt Weld, Socket Weld, Threaded (NPT)
- Operation: Manual (Handwheel), Gearbox, Pneumatic, Electric
- Body Patterns: T-Pattern, Y-Pattern, Angle-Pattern
- Disc Types: Conventional Disc, Needle Disc, Plug Type Disc, Ball Bearings Disc
- Standards: ASME B16.34, BS 1873, API 602, NACE MR0175
Specifications
| 公称通径 (Size/DN) | DN15 |
|---|---|
| 压力等级 (Pressure Rating) | PN10~PN420 |
| 阀体材质 (Body Material) | Carbon & Alloy Steel (WCB, WC6, WC9, A105) |
| 适用介质 (Applicable Media) | Water, Oil, Gas, Steam |
| 连接方式 (End Connection) | Flanged / Threaded / Welded |
| 驱动方式 (Operation Type) | Pneumatic / Hydraulic |
| 应用领域 (Applications) | Petroleum, Chemical, Power |
