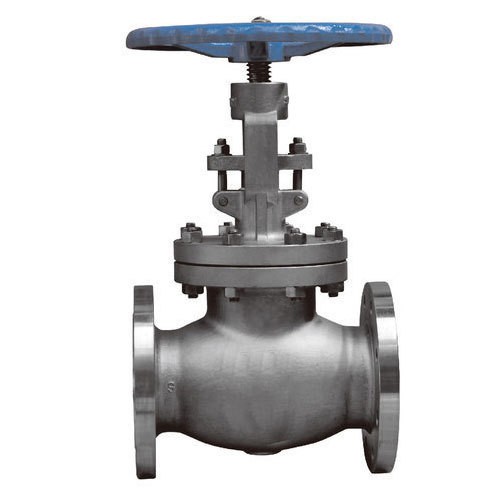

T Pattern Globe Valve

Product Introduction

What is a T pattern globe valve?

The T pattern globe valve is used for flow regulation, frequent operation, increased flow resistance or forced closure when closed. Globe valves are closing valves in which the closing member moves vertically on the valve seat. With this disc travel pattern, the valve seat opening changes proportional to the disc travel. The T pattern globe valve can also be used for switching work, the seat load can be positively controlled, and the sealing ability is strong. The standard straight “T” body is the most common, but because of its tortuous flow path, it provides the highest flow resistance of the available pattern.

T pattern globe valve product range

Materials: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel, Hastelloy.

Standards: API 602, API 606, BS 5352, ASME B16.34, ASME B16.11, ASME B1.20.1, ASME B16.25.

Applicable pressure class: 150 LB – 1500 LB class.

Forming method: forging, casting

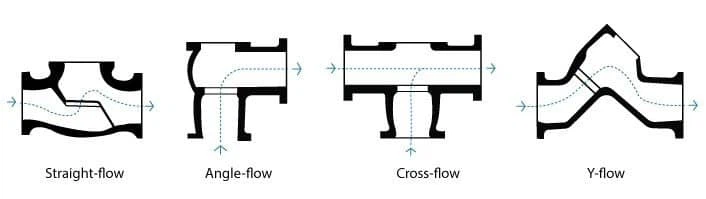

Globe valve classification

DC – z body globe valve. The most common type.

Angular flow – right angle globe valve. Lower pressure drop than Z-type due to less right angle flow.

Cross Flow – t pattern globe valve.

Diagonal flow – y type globe valve. The pressure drop is lower than the Z type. Suitable for higher pressures.

The T pattern globe valve is suitable for many applications where flow must be regulated and constant flow is not necessarily required. Here are just a few common applications where you might find globe valves:

Cooling water system

Fuel System

Feed water or chemical feed system

Boiler and main steam vents and drains

Turbine oil system and others

Epilogue

There are many different names for globe valve. For example, according to the application, it can be called ammonia globe valve, steam pipe valve, according to the caliber, it can be called full bore globe valve, globe valve 6 inch, globe valve 8 inch, according to the structure, it is called two way globe valve, According to the driving method, it is called pneumatic actuator globe valve, according to the material, it is called cf8 globe valve, etc., but in fact, they all use one product, so you can directly apply the occasion, valve diameter, flow, medium and other parameters, directly ask our engineers to help Your purchase, waiting for your contact.

FAQ

Q: How to get free samples?

A: Send your address,your telephone number,post code,and express account number to our mail box,and told us which samples you need and samples specification.

Q: Can you produce products with my own brand?

A: Yes, we can offer OEM services.

Q: Do you have any international certificate?

A: Yes,we have API, ISO and etc.

Q: How long does my order take to be delivered?

A: It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
