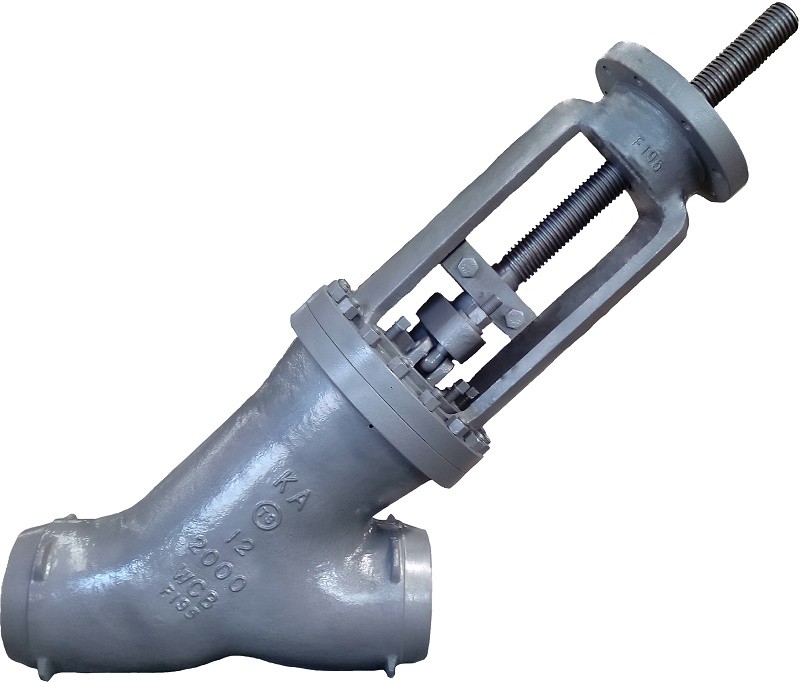

Y Type Globe Valve
Product Introduction Product DescriptionY-type globe valves are used as an alternative to the high pressure drop inherent in standard globe valves. The Y-shaped design minimizes the flow resistance of the globe valve. The Y-type globe valve is designed so that the seat and stem are angled at 45 degr
Product Introduction
Product Description
Y-type globe valves are used as an alternative to the high pressure drop inherent in standard globe valves. The Y-shaped design minimizes the flow resistance of the globe valve. The Y-type globe valve is designed so that the seat and stem are angled at 45 degrees to the line axis, providing a straighter flow path when fully open with minimal flow resistance. These valves are used for throttling during seasonal or start-up operations.
Y-type globe valve manufacturers recommend these valves for applications requiring high pressure and undesired pressure drop. With the Y-stop valve, this pressure drop problem is reduced and its location in the piping system is not restricted. These valves have a low pressure drop due to low fluid resistance. Wye globe valve stem and seat provide a straight flow path when fully open, helping to reduce fluid flow resistance.
Features
Materials of Construction: Carbon Steel (CS), Stainless Steel (SS), Duplex and Super Duplex, Inconel and Incoloy®, Titanium, Zirconium, Uranus® B6, Tantalum, Nickel, Hastelloy®, Monel
Construction methods: fabrication (welding), casting, solid
Application – Y-type globe valve
Conditions of use: high pressure, high temperature, low temperature, wear, corrosion, high viscosity, vacuum
Fluid types: liquids, liquids containing solid particles – slurries, gases, powders and pulverulent media, high viscosity fluids
Applications: Fine chemicals, plastics and polymers, general chemicals, petrochemicals, nuclear and naval/submarine, cryogenic services
Advantages
1. Compared with the vertical globe valve, the pressure is reduced.
2. Excellent resistance to the effects of thermal cycling.
3. Quick and easy online maintenance.
4. The whole valve seat adopts CoCr alloy for surface hardening treatment.
5. The disc is fully guided with a CoCr alloy base and guide surface.
6. Close tightly.
7. Stem expansion/contraction thrust unit for high temperature applications (optional).
8. Other sizes are available upon request.
9. Filling optional live load.
Applications for our y-type globe valves:
Works with any liquid, powder or gas.
Great for high pressure.
Optional bellows for hazardous media.
low pressure loss
FAQ
Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
Q. How to proceed an order for valve?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Product Overview - XURI Valve
This Y pattern globe valve provides precise flow throttling and regulation. Available in carbon steel, stainless steel, and alloy materials. Class 150-2500, sizes 1"-24". API 602 certified. Suitable for high-pressure steam, chemical processing, power generation, and general industrial applications.
ISO 9001 certified globe valve manufacturer, factory direct supply. OEM/ODM available for custom trim and materials. API 602 certified, fast delivery worldwide.
Product Features
1. Compared with the vertical globe valve, the pressure is reduced.2. Excellent resistance to the effects of thermal cycling.3. Quick and easy online maintenance.4. The whole valve seat adopts Co Cr alloy for surface hardening treatment.5. The disc is fully guided with a Co Cr alloy base and guide surface.6. Close tightly.7. Stem expansion/contraction thrust unit for high temperature applications (optional).8. Other sizes are available upon request.9. Filling optional live load. Applications for our y-type globe valves: Works with any liquid, powder or gas. Great for high pressure. Optional bellows for hazardous media.low pressure loss FAQQ. How do you ship the goods and how long does it take to arrive?A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional. Q. How to proceed an order for valve?A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q: Are you products standard?A: Our model is standard, if you have specific demand, pls tell us. Q: Do you have interest to do our own design items?A: Absolutely! We have big interest.
Available Configurations
- Sizes: DN15 - DN400 (1/2" - 16")
- Pressure Ratings: Class 150 - Class 2500 (PN16 - PN420)
- Body Materials: WCB, WCC, LCB, LCC, WC6, WC9, CF8, CF8M, CF3, CF3M, A105, F22, F304, F316
- End Connections: Flanged (RF, RTJ), Butt Weld, Socket Weld, Threaded (NPT)
- Operation: Manual (Handwheel), Gearbox, Pneumatic, Electric
- Body Patterns: T-Pattern, Y-Pattern, Angle-Pattern
- Disc Types: Conventional Disc, Needle Disc, Plug Type Disc, Ball Bearings Disc
- Standards: ASME B16.34, BS 1873, API 602, NACE MR0175
Specifications
| 压力等级 (Pressure Rating) | PN16 ~ PN420 / Class 150 ~ 2500 |
|---|---|
| 阀体材质 (Body Material) | Carbon & Alloy Steel (WCB, WC6, WC9, A105) |
| 适用介质 (Applicable Media) | Water, Oil, Gas, Steam |
| 连接方式 (End Connection) | Welded |
| 驱动方式 (Operation Type) | Manual / Automatic |
| 应用领域 (Applications) | Petroleum, Chemical, Power |
