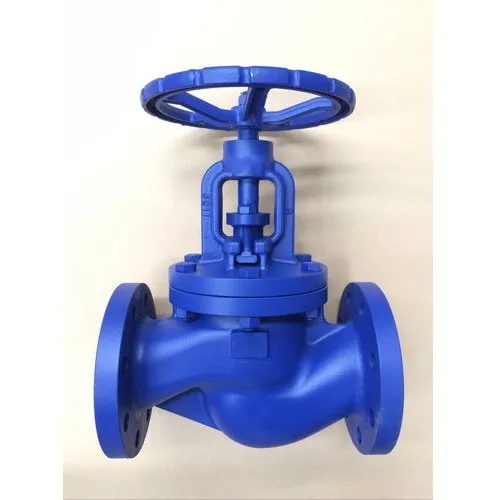

Soft Seated Globe Valve
Product Introduction Product DescriptionThe soft seated globe valve is also called a soft-sealed globe valve, which refers to a globe valve with a non-metallic sealing surface. But usually, soft seated globe valve is usually called ptfe lined globe valve, pfa lined globe valve.PTFE Lined Globe Valve
Product Introduction
Product Description
The soft seated globe valve is also called a soft-sealed globe valve, which refers to a globe valve with a non-metallic sealing surface. But usually, soft seated globe valve is usually called ptfe lined globe valve, pfa lined globe valve.
PTFE Lined Globe Valves are designed for general service applications up to ANSI 150. These general-purpose service applications are primarily aimed at extremely aggressive media in chemical processes. This design increases flow, but also reduces the pressure recovery factor, making the design more susceptible to cavitation, flashing, and flow noise. The design of this floating ball valve will increase the starting torque required by the actuator. It can be assembled with pneumatic, electric, hydraulic or electro-hydraulic actuators, or supplied with a complete control valve structure.
Standards and Specifications of soft seated globe valve
Caliber: 1/2″-2″
Nominal pressure: 1.6~16
Shell strength test: GB/T 12237
Upper sealing test: JB/T 79 HG/T 20592
Sealing test: GB/T 13927
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Connection method: NPT, SW, BW, RF, RJ, etc.
Operation mode: manual, gear, pneumatic, electric, hydraulic, etc.
According to different calibers, soft seat globe valves are divided into
1/2 inch globe valve
1 inch globe valve
1 1/2 inch globe valve
2 inch globe valve
According to the driving mode, the soft seat globe valve can be divided into
motorised globe valve
pneumatic control globe valve
hand operated globe valve
Hydraulic globe valve
Structural features of soft seated globe valve
1. When fully closed, the handwheel rotates clockwise.
2. It can be installed in any position of the pipeline, and the medium flows from bottom to top.
3. Stainless steel globe valve is suitable for pipelines with various corrosive media, with good corrosion resistance and sufficient strength.
4. The alloy steel globe valve is suitable for high temperature resistant steam and oil port pipelines.
FAQ
Q. Do you accept custom design on size?
A: Yes, if the size is reasonable
Q.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea.
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
Product Overview - XURI Valve
This Soft seated globe valve provides precise flow throttling and regulation. Available in carbon steel, stainless steel, and alloy materials. Class 150-2500, sizes 1"-24". API 602 certified. Suitable for high-pressure steam, chemical processing, power generation, and general industrial applications.
ISO 9001 certified globe valve manufacturer, factory direct supply. OEM/ODM available for custom trim and materials. API 602 certified, fast delivery worldwide.
Product Features
1. When fully closed, the handwheel rotates clockwise.2. It can be installed in any position of the pipeline, and the medium flows from bottom to top.3. stainless steel globe valve is suitable for pipelines with various corrosive media, with good corrosion resistance and sufficient strength.4. The alloy steel globe valve is suitable for high temperature resistant steam and oil port pipelines. FAQQ. Do you accept custom design on size?A: Yes, if the size is reasonable Q. Transportation Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea. Q: Are you trading company or manufacturer?A: We are factory. Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples? is it free or extra?A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment?A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us.
Available Configurations
- Sizes: DN15 - DN400 (1/2" - 16")
- Pressure Ratings: Class 150 - Class 2500 (PN16 - PN420)
- Body Materials: WCB, WCC, LCB, LCC, WC6, WC9, CF8, CF8M, CF3, CF3M, A105, F22, F304, F316
- End Connections: Flanged (RF, RTJ), Butt Weld, Socket Weld, Threaded (NPT)
- Operation: Manual (Handwheel), Gearbox, Pneumatic, Electric
- Body Patterns: T-Pattern, Y-Pattern, Angle-Pattern
- Disc Types: Conventional Disc, Needle Disc, Plug Type Disc, Ball Bearings Disc
- Standards: ASME B16.34, BS 1873, API 602, NACE MR0175
Specifications
| 公称通径 (Size/DN) | 2 inch |
|---|---|
| 压力等级 (Pressure Rating) | PN16 ~ PN420 / Class 150 ~ 2500 |
| 阀体材质 (Body Material) | Stainless Steel (CF8, CF8M, 304, 316) |
| 适用介质 (Applicable Media) | Water, Oil, Gas, Steam |
| 连接方式 (End Connection) | Flanged / Threaded / Welded |
| 驱动方式 (Operation Type) | Gear / Pneumatic / Hydraulic |
| 应用领域 (Applications) | Petroleum, Chemical, Power |
