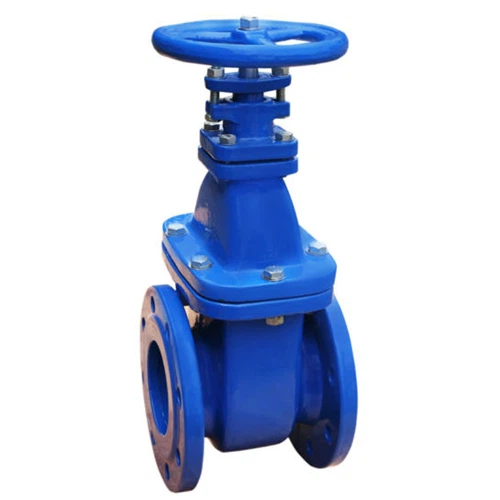

Solid Wedge Gate Valve
Product Introduction Wedge gate valves differ from parallel gate valves in that the closures are wedge shaped rather than parallel. The purpose of the wedge is to introduce a high auxiliary seat load so that the wedge gate valve can seal not only high fluid pressures but also low fluid pressures. Th
Product Introduction
Wedge gate valves differ from parallel gate valves in that the closures are wedge shaped rather than parallel. The purpose of the wedge is to introduce a high auxiliary seat load so that the wedge gate valve can seal not only high fluid pressures but also low fluid pressures. Therefore, the seat tightness that can be achieved by a wedge gate valve may be higher than that of a conventional parallel gate valve.

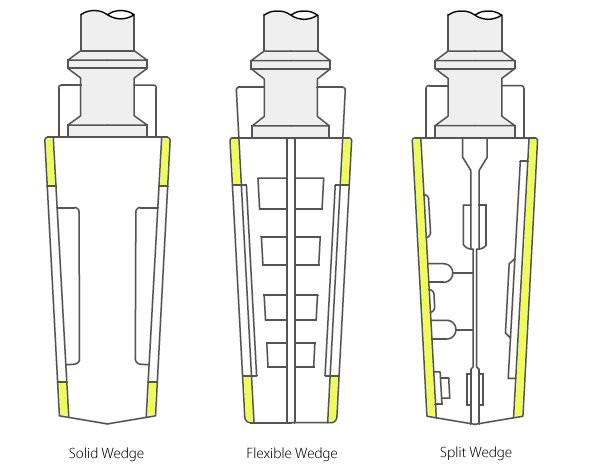

Types of cut-off wedges (gates)
The solid wedge type gate valve is the most commonly used type of gate valve. The wedge is a single piece construction machined to match the body seat in order to provide a tight sealing action.

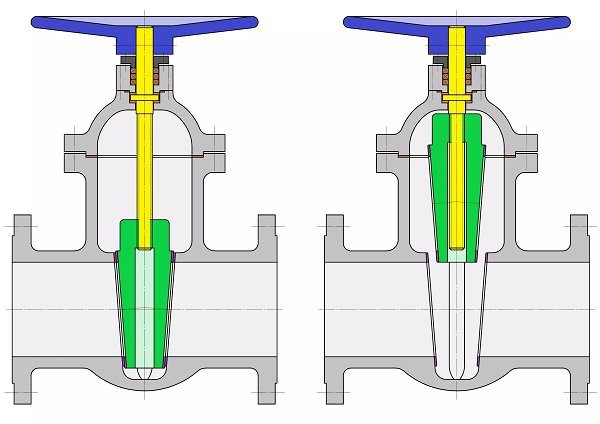

Solid (rigid) wedge gate valve
The shut-off element of a gate valve is wedge-shaped and usually consists of two plates connected together. The solid wedge type gate valve is the most commonly used type of gate valve. The wedge is a single piece construction machined to match the body seat in order to provide a tight sealing action.It can be a solid or hollow structure. The advantage of this design is simplicity and robustness, but body deformation due to thermal and piping stress may dislodge or plug the metal sealing wedge, making it more prone to leaks. The valve with solid wedge can be installed in any position and it is suitable for almost all fluids. It can also be used for turbulent flow.
If two wedge plates are firmly connected (welded), they are completely rigid, this is called a solid wedge. The sides of the wedge and its “counterpart” in the body, the body seat, must be machined very precisely and flatly to ensure a reliable sealing of the gate to the medium.
For small gate valves up to DN 40 and very large gate valves, rigid wedges are usually made from one piece (forging material, casting). Especially in the case of larger nominal diameters, it is very heavy or difficult to move and is therefore correspondingly expensive.
Solid wedge gate valve can be divided into rising stem gate valve and non-rising stem gate valve.
Product Description
Size | DN50—DN1000 |
Nominal Pressure | PN10/PN16 |
Working Temperature | -10°C~120°C |
Suitable Medium | Chemicals, air, water, steam, oil, acids, salts, etc |
Design standard | DIN3352 F4/F5, AWWA C509/515, BS5163 |
Face to Face | DIN3202 F4/F5, BS5163 |
Flange Drilling | DIN2533 PN10/PN16, ANSI125/150, JIS10K |
Test Inspection | DIN3230, BS6755, API598 |
Materials: | |
Body | Cast Iron, Ductile Iron |
Disc | Ductile Iron |
Stem | Stainless steel |
Sealing Ring | NBR, EPDM |
O ring | NBR, EPDM |
Product Overview - XURI Valve
Solid wedge gate valve designed for on-off isolation in pipeline systems. Available in carbon steel, stainless steel, and alloy materials. Class 150-2500, sizes 2"-48". API 600 certified. Suitable for oil & gas, petrochemical, power generation, and water treatment applications.
ISO 9001 certified gate valve manufacturer, factory direct pricing with fast global delivery. API 600 compliant, OEM/ODM available for custom specifications.
Available Configurations
- Sizes: DN15 - DN600 (1/2" - 24")
- Pressure Ratings: Class 150 - Class 2500 (PN16 - PN420)
- Body Materials: WCB, WCC, LCB, LCC, WC6, WC9, C5, C12A, CF8, CF8M, CF3, CF3M, Duplex 2205/2507
- End Connections: Flanged (RF, RTJ), Butt Weld, Socket Weld, Threaded (NPT)
- Operation: Manual (Rising Stem, Non-rising Stem), Gearbox, Pneumatic, Electric
- Seat Design: Flexible Wedge, Solid Wedge, Split Wedge, Double Disc Parallel Slide
- Trim Materials: 13Cr, STL, Monel, Inconel, Hastelloy
- Standards: API 600, API 602, ASME B16.34, BS 1414, NACE MR0175
Specifications
| 公称通径 (Size/DN) | DN40 |
|---|---|
| 压力等级 (Pressure Rating) | PN10/PN16 |
| 阀体材质 (Body Material) | Carbon & Alloy Steel (WCB, WC6, WC9, A105) |
| 适用介质 (Applicable Media) | Water, Oil, Gas, Steam |
| 连接方式 (End Connection) | Welded |
| 驱动方式 (Operation Type) | Manual / Automatic |
| 应用领域 (Applications) | Petroleum, Chemical, Power |
