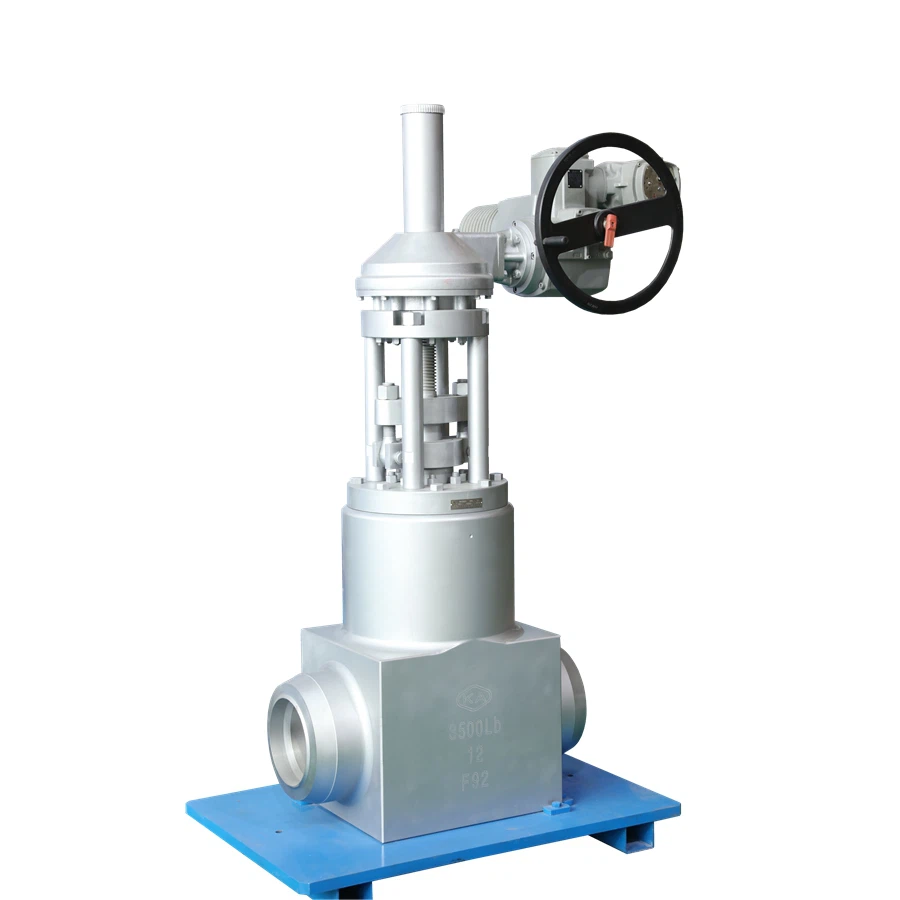

3 Inch Gate Valve

Product Introduction

3 inch Gate valves are used to cut off or connect the medium in the pipeline. Using different materials, it can be applied to various media such as water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea, etc., and is widely used in oil pipelines. Most hardware gate valves are a reduced bore design. Compared with the cast steel gate valve of the same diameter, the flow rate is slightly smaller, but the pressure and temperature range it withstands is higher than that of the cast steel valve, and the sealing performance is much better than that of the cast steel gate valve. Longer life, medium flow direction is not restricted by other gate valves.

Description

-Design and manufacturing standards, in accordance with the: ASME B16.34, API6D;

-Structure length according to: ASME B16.10;

-The flange end size according to: ASME B16.5

-Threaded end size in accordance with the: ANSI B1.20.1;

-The butt end size in accordance with the: ANSI B16.25

-Socket size in accordance with the: ANSI B16.11

-Inspection and testing in accordance with the: API598

-An optional sealing surface material: 13 cr alloy steel (code H)Carbide STL code (Y)Can choose other special sealing materials according to customer’s requirement.

The main alternative material

Carbon steel class: WCB, WCC, A105, etc

Class: stainless steel 304, 316, 304 L, 316 L, CF8, CF8M, CF3, CF3M, CF8C and duplex stainless steel, etc.

Class: low-temperature steel LF2, LCC, LCB, etc

Chrome molybdenum steel types: WC5 WC6, WC9, C5, etc

Gate valves have the following advantages:

1. Simple structure, easy to manufacturer and maintain

2. Small working stroke and short opening and closing time

3. Good sealing performance, small friction between sealing surfaces and long life

4. In the process of opening and closing, the friction of the sealing surface is smaller than that of the gate valve, which is wear-resistant

5. Usually only one sealing surface, good manufacturing process, easy to maintain

The company strictly implements industry and international standards, and develops and manufactures high-temperature and high-pressure gate valves, ball valves, globe valves, suction check valves and other on-off valves, high-pressure three-way valves, high and low pressure bypass valves, regulating valves, butterfly valves and other control valves. There are more than 1000 kinds of valve series products, which are widely used in thermal power, petrochemical, nuclear power, metallurgy, water conservancy and other industries, and provide many high-parameter valves for many special industries in China. We are one of the suppliers of Qinshan Nuclear Power Plant; can design and manufacture various personalized valve products according to American ANSI, ASME, API standards, Japanese JIS, E101 standards, and British BS standards, and is committed to providing professional, accurate and professional valves to new and old customers around the world. , High-level products and services; product sales cover the whole country and are exported to more than 20 countries and regions such as Asia, Africa, Europe and the United States.
