Gate Valve

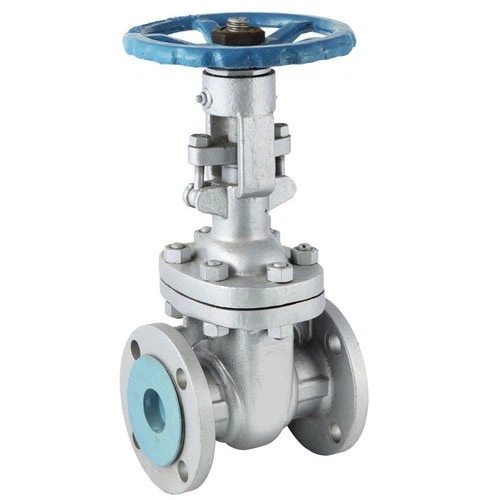

Non Rising Gate Valve
Model: XURI-NONRISINGGAT
| Pressure Rating | Class 150# ~ 2500# / PN10 ~ PN420 |
| Materials | Carbon Steel / Stainless Steel / Alloy Steel |
| Connection Type | Flanged / Threaded / Butt Weld / Socket Weld |
| Temperature Range | -196°C ~ 800°C (depending on material and design) |
| Standards | API / ANSI / ASME / DIN / BS |
Description

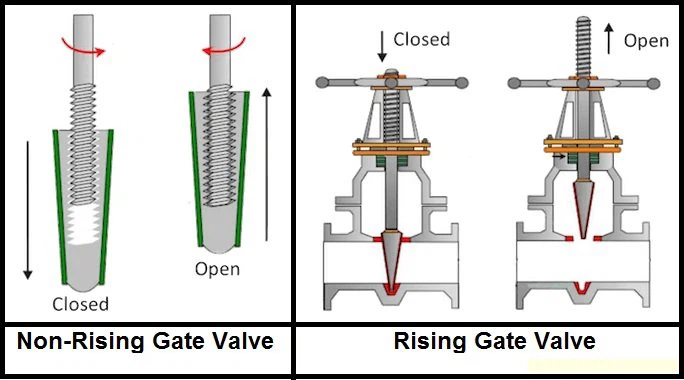

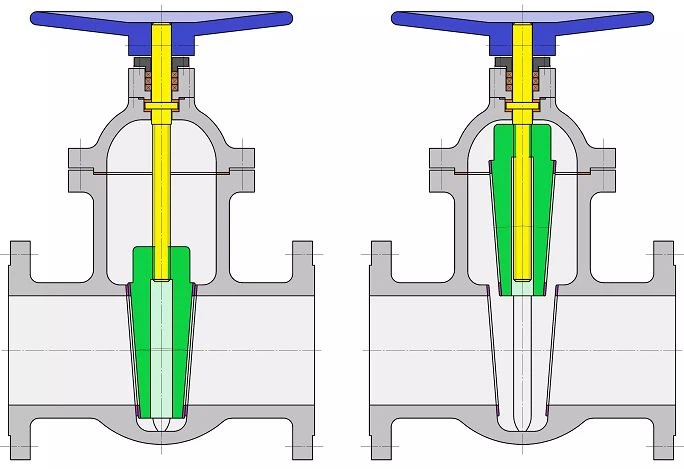

Non rising gate valve refers to the outer stem, also known as non rising sluice valve or blind stem wedge gate valve. In a non rising gate valve, the valve stem will turn to open and close the gate, but the valve stem will not move up or down as it turns. When the valve stem turns, it enters or moves out of the valve, which also moves the gate to open or seal the valve.
Features:
• Manufactured in our ISO9001:2016 certified facilityn• Designed and tested to international standardsn• Full material traceability from mill test reportsn• Third-party inspections (SGS, BV, TÜV) welcomen• Comprehensive quality assurance at every stage
