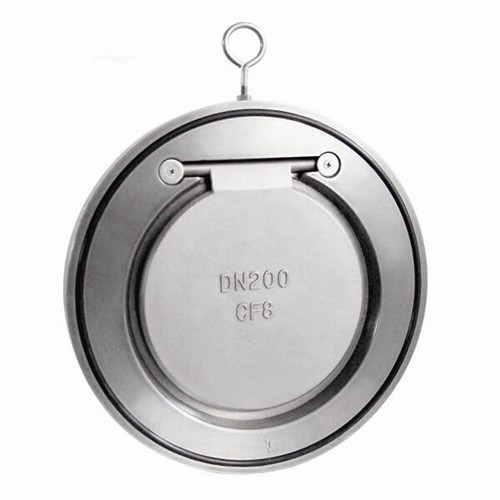

Single Disc Wafer Check Valve
Model: XURI-SINGLEDISCWA
| Pressure Rating | Class 150# ~ 2500# / PN10 ~ PN420 |
| Materials | Carbon Steel / Stainless Steel / Alloy Steel |
| Connection Type | Flanged / Threaded / Butt Weld / Socket Weld |
| Temperature Range | -196°C ~ 800°C (depending on material and design) |
| Standards | API / ANSI / ASME / DIN / BS |
Description
Wafer check valve has the advantages of simple structure, beautiful appearance, light weight and convenient installation. It is mainly suitable for water supply system, petroleum, chemical industry, metallurgy and other industrial sectors, and it is more suitable for places with limited installation space.
Features:
1. Single plate swing structure;n2. Thin disc design;n3. The sealing seat is in the valve body;n4. The sealing ring can be replaced;n5. Wafer structure, easy to install;n6. Small pressure loss;n7. Installed in horizontal or vertical upstream pipes;n8. Small size, light weight and small structural length, greatly reducing the installation area.
