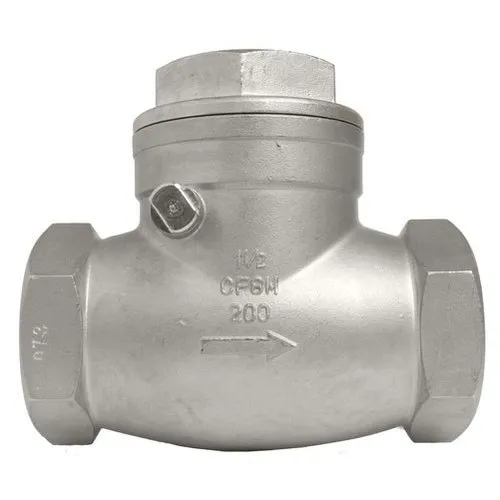

1.5 Inch Check Valve

Product Introduction

What 1.5 inch check valve?

A 1.5 inch check valve is a mechanical device that allows liquids and gases to flow in only one direction, preventing the flow from being reversed. They are classified as one-way valves, which means they have two openings in the body, one for fluid to enter and one for fluid to leave. Fluid flow in the desired direction opens the valve, while backflow forces the valve to close.

The operating mechanism of the check valve is simple and automatically stops the flow of fluid in the wrong direction. XURI offers many types of check valves in various configurations, functional types, sizes and material structure.

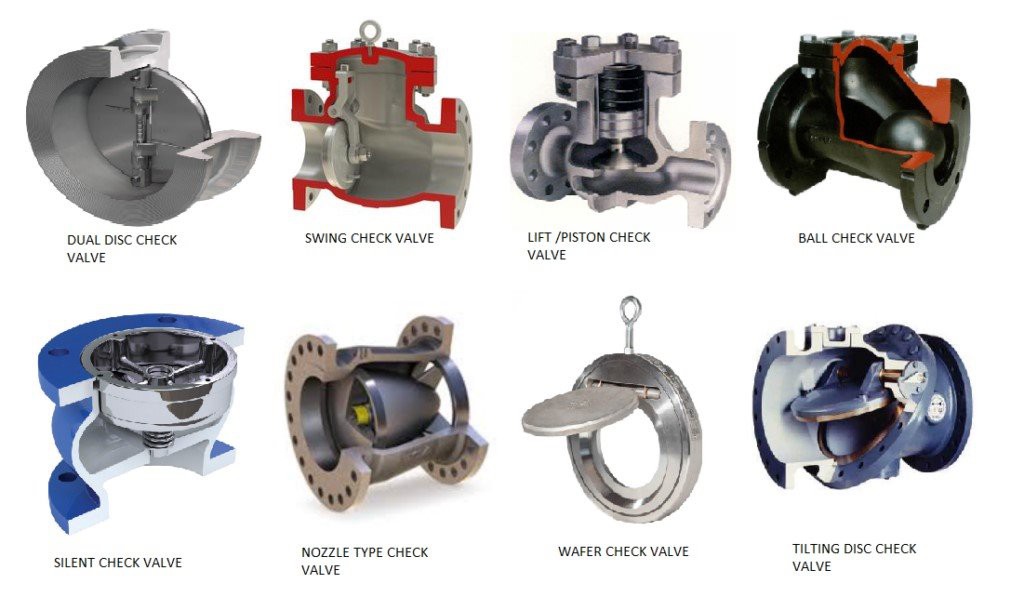

What types of 1.5 inch check valve are there?

According to the structure, check valves can be divided into three types: lift check valves, swing check valves and butterfly check valves. Lift check valve can be divided into vertical and horizontal. The swing check valve is divided into three types: single-lobe, double-lobe and multi-lobe. The butterfly check valve is a straight-through type. The above types of check valves can be divided into three types: threaded connection, flange connection and welding. A check valve is a valve that automatically prevents the backflow of fluid. The disc of the check valve opens under the action of fluid pressure, and the fluid flows from the inlet side to the outlet side. When the pressure on the inlet side is lower than that on the outlet side, the valve disc will automatically close under the action of fluid pressure difference, gravity and other factors to prevent the fluid from flowing back.

Features

The check valve protects the mechanical components in the piping system as the reverse flow of the fluid ceases. A check valve prevents primary backflow in the event of a pipe rupture. The mechanism also reduces wasted energy consumption by preventing backflow to lower pressures. Check valves have excellent hydrodynamic properties. Lighter weight facilitates installation, transport and storage.

Application

The valve body structure of the straight-through lift check valve adopts the valve body of the globe valve, and the valve disc moves up and down along the line in the channel. Straight-through lift check valves can generally only be installed in horizontal pipelines, while vertical lift check valves are generally installed in vertical pipelines. The products are widely used in pipelines of various working conditions such as petroleum, chemical, pharmaceutical, and electric power industries.

Industry Codes and Standards

Valve Design: BS 1868 / API 6D

Pressure Testing: BS 6755-I

Face To Face: ANSI B 16.10

Flange Drilling: ANSI B 16.5 / BS 10 Table / DIN / IS / JIS Std.

Butt Weld End: ANSI B 16.25

Face to Face: ANSI B 16.10

Socket Weld End: ANSI B 16.11

Screwed End: ANSI B 1.20.1(BSP/NPT)

How to cooperate with us?

1. Please understand this product carefully before ordering, and clearly indicate the specification, model, material, pressure and quantity.

2. When the occasion of use is very important or the environment is more complicated, please provide the design drawings and detailed parameters as much as possible, and our Jinneng valve experts will review and check for you.

3. When ordering this product, please fill in the name of the ordering unit, the receiving unit, the paying unit, and the mailing address (including the province, city, prefecture, district, county, street, and number) in detail.

4. All orders of the company’s products are subject to cash pick-up or cash-on-delivery.

Inspection (unloading) instructions:

1. Carefully check whether the product 1.5 inch check valve is the same as the one you ordered, and whether the packing box is damaged.

2. Choose suitable methods and tools to prevent product deformation or damage; our company attaches great importance to service issues. In order to achieve customer-satisfied product standards, we must share experience, information, commitment, and goals side by side with customers, and develop excellent products through cooperative relations. product. No matter you ask any questions about product design principle, price, process, progress, transportation route, etc., there are dedicated customer service personnel to answer for you.

What are the requirements for the selection?

1. The corresponding size of the check valve should be determined, and the valve supplier must provide the data of the selected size, so that the valve size when the valve is fully opened at a given flow rate can be found;

2. For high and medium pressure check valves below DN50mm, vertical lift check valves and straight-through lift check valves should be selected;

3. For low pressure check valves below DN50mm, butterfly check valves, vertical lift check valves and diaphragm check valves should be selected;

4. For high and medium pressure check valves with DN greater than 50mm and less than 600mm, swing check valves should be used;

5. For medium and low pressure check valves with DN greater than 200mm and less than 1200mm, non-wear spherical check valves should be selected;

6. For low-pressure check valves with DN greater than 50mm and less than 2000mm, butterfly check valves and diaphragm check valves should be selected;

7. For pipelines that require less or no water hammer when closed, slow-closing swing check valves and slow-closing butterfly check valves should be used.

Check valve model preparation method: such as H41H-16C in order

Additional number of check valve: HH micro-resistance slow-closing check valve, BH insulation check valve, HQ ball check valve;

(1) Check valve type: H stands for check valve;

(2) Check valve connection: 4 flanges, 6 welding, 7 wafers;

(3) Check valve form: 1 lift type, 2 vertical type, 4 swing type, 6 double flap type, 8 butterfly type;

(4) Check valve seal: B babbitt, F fluoroplastic, H stainless steel, M monel, X rubber, Y carbide, W direct processing;

(5) Check valve pressure: 16 pressure, 16 kg, PN1.6-25mpa, pound class 150LB-2500LB, Japanese class 5K-63K;

(6) Check valve material: Q ductile iron, C carbon steel, P-304, R-316, A titanium alloy, I chromium molybdenum steel;
