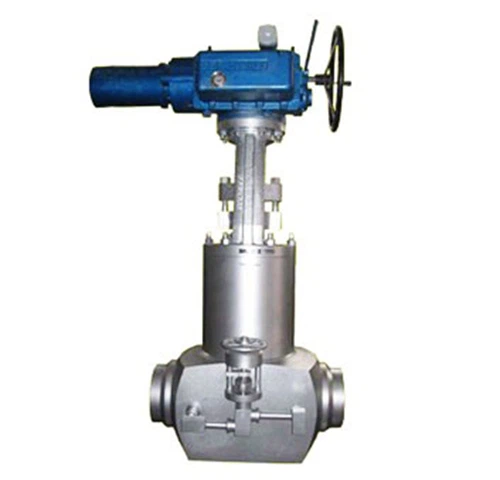

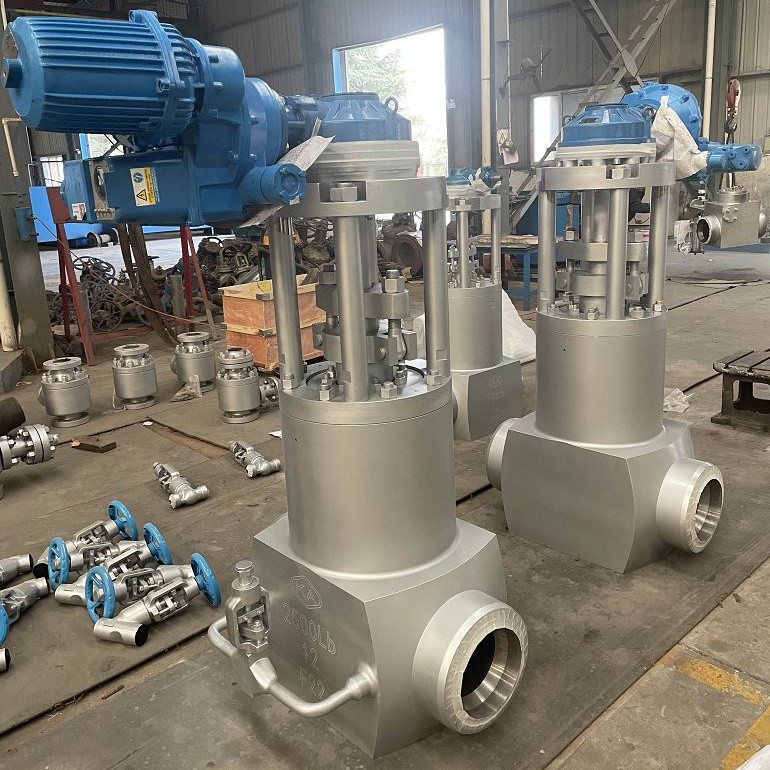

Forged Steel Gate Valve
Product Introduction As a kind of gate valve, all gate valves processed with forging materials are collectively referred to as forged steel gate valves. Forging materials include A105, F11, F5, 304, 304L, 316, 316L, etc. Forged steel gate valves often referred to in China usually refer to small-diam
Product Introduction
As a kind of gate valve, all gate valves processed with forging materials are collectively referred to as forged steel gate valves. Forging materials include A105, F11, F5, 304, 304L, 316, 316L, etc. Forged steel gate valves often referred to in China usually refer to small-diameter forged steel gate valves.
Diameter range: DN10~DN50;
Pressure range:
American standard: Class150 ~ 2500, can be produced and processed in American standard size, and the manufacturers are all available from stock. Forged steel gate valves exceeding DN50 diameter need to be customized.
Forged steel gate valves are suitable for demanding process applications. When open, media will flow through the valve with minimal turbulence and pressure drop and industries that require isolation of viscous fluids and liquids.
The forged steel gate valve has small fluid resistance and small torque required for opening and closing. It can be used in the ring network pipeline where the medium flows in two directions, that is to say, the flow direction of the medium is not restricted. When fully open, the sealing surface is less eroded by the working medium than the globe valve. The body structure is relatively simple, the manufacturing process is good, and the structure length is relatively short.
Working Environment
Forged steel gate valve is suitable for small-diameter pipelines of Class 150 ~ 2500 and operating temperature of -29 ~ 425 ℃ (carbon steel) or -29 ~ 500 ℃ (stainless steel), and is used to cut off or connect the medium in the pipeline. It is widely used in oil pipelines.
Why use a gate valve?
These valves provide positive tight closure for process fluids in pipelines in a horizontal or vertical position. They also offer a small amount of control for throttling steam, gas or liquids and are easy to operate.
Product Overview - XURI Valve
Forged steel gate valve designed for on-off isolation in pipeline systems. Available in carbon steel, stainless steel, and alloy materials. Class 150-2500, sizes 2"-48". API 600 certified. Suitable for oil & gas, petrochemical, power generation, and water treatment applications.
ISO 9001 certified gate valve manufacturer, factory direct pricing with fast global delivery. API 600 compliant, OEM/ODM available for custom specifications.
Product Features
1. The forged steel gate valve has low fluid resistance, and the sealing surface is less brushed and eroded by the medium.2. Forged steel gate valve is suitable for small-diameter pipelines of Class 150 ~ 2500 and working temperature of -29 ~ 425 ℃ (carbon steel) or -29 ~ 500 ℃ (stainless steel), used to cut off or connect the medium in the pipeline.3. Butt-welded forged steel gate valve has simple shape, short structural length, good manufacturing process and wide application range.4. The gate is placed vertically in the valve body, while the disc of the globe valve is placed in the valve body horizontally, so the structural length is shorter than that of the globe valve. 5. The internal medium channel of the forged steel gate valve body is straight, and the medium does not change its flow direction when it flows through the gate valve, so the fluid resistance is small.6. The medium flow direction of the socket welded forged steel gate valve is not restricted, does not disturb the flow, and does not reduce the pressure. The sealing performance is very good and the sealing surface is less eroded when fully open.7. The movement direction of the forged steel gate valve is perpendicular to the direction of the fluid, and can be fully opened and fully closed. Choose different materials, can be applied to water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other media. Installation points.
Available Configurations
- Sizes: DN15 - DN600 (1/2" - 24")
- Pressure Ratings: Class 150 - Class 2500 (PN16 - PN420)
- Body Materials: WCB, WCC, LCB, LCC, WC6, WC9, C5, C12A, CF8, CF8M, CF3, CF3M, Duplex 2205/2507
- End Connections: Flanged (RF, RTJ), Butt Weld, Socket Weld, Threaded (NPT)
- Operation: Manual (Rising Stem, Non-rising Stem), Gearbox, Pneumatic, Electric
- Seat Design: Flexible Wedge, Solid Wedge, Split Wedge, Double Disc Parallel Slide
- Trim Materials: 13Cr, STL, Monel, Inconel, Hastelloy
- Standards: API 600, API 602, ASME B16.34, BS 1414, NACE MR0175
Specifications
| 公称通径 (Size/DN) | DN10 |
|---|---|
| 压力等级 (Pressure Rating) | Class 150 |
| 阀体材质 (Body Material) | Carbon & Alloy Steel (WCB, WC6, WC9, A105) |
| 适用介质 (Applicable Media) | Water, Oil, Gas, Steam |
| 连接方式 (End Connection) | Flanged / Threaded / Welded |
| 驱动方式 (Operation Type) | Manual / Automatic |
| 应用领域 (Applications) | Petroleum, Chemical, Power |
