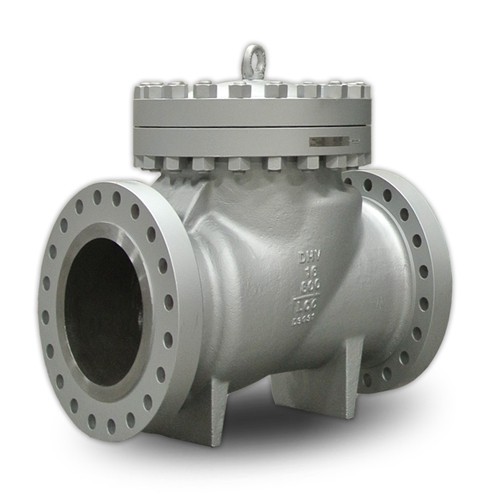

Stainless Steel Flanged Check Valve
Product Introduction Product DescriptionWorking principle of stainless steel flange check valve: The check valve automatically opens and closes the valve flap depending on the flow of the medium itself to prevent the backflow of the medium.Execution standard and performance specificationNominal diam
Product Introduction
Product Description
Working principle of stainless steel flange check valve: The check valve automatically opens and closes the valve flap depending on the flow of the medium itself to prevent the backflow of the medium.
Execution standard and performance specification
Nominal diameter | DN8-DN100, 1/2″-12″ |
Nominal pressure | PN16 |
Shell strength test pressure | PN2.4MPA |
Low pressure air tightness test pressure | 0.8MPA |
Applicable media | Water, oil, gas, nitric acid, acetic acid |
Design and Manufacturing Standards | ANSI B16.34, GB/T-12224-2015 |
Test Standard | API598, GB/T13927-2008, EN12516-3 |
thread standard | G, BSP, BSPT, DIN259, DIN2999, ISO228, NPT, PT, ISO7/1 |
Stainless steel flange check valve main parts material table
valve body | A216 (WCB), A351 CF8, CF8M, CF3M, 321, 2205 |
valve plate | SUS304, SUS316, SUS316L, SUS321, SUS2205 |
valve seat | SUS304, SUS316, PTFE, RPTFE, M111, M1600, M1700, PPL |
screw | SUS304, SUS316 |
Stainless steel flange check valve storage, maintenance, installation and use
1. The valve should be stored in a dry and ventilated room, and both ends of the valve channel should be blocked.
2. Valves stored for a long time should be checked regularly to remove dirt. Special attention should be paid to the cleaning of the sealing surface to prevent damage to the sealing surface.
3. Before installation, carefully check whether the valve mark conforms to the use requirements.
4. Check the inner cavity and sealing surface of the valve before installation. If there is any dirt, it should be wiped with a cleaning cloth.
5. Before installation, it should be noted that the valve direction mark is consistent with the flow direction of the medium.
6. The lift-type vertical flap check valve should be installed on the vertical pipeline, and the lift-type horizontal flap check valve and the swing check valve should be installed on the horizontal pipeline.
7. Pay attention to whether the valve has abnormal sound and vibration during use. In order to prevent the water hammer effect in the pipeline, pay attention to the fluctuation of the medium pressure in the pipeline.
Why choose us?
Kaifeng High & Middle Pressure Valves Co.,Ltd.’s advanced design concept combined with precise CNC processing technology, the processing dimensions of each valve are strictly controlled within the tolerance range, and all structural design and accessories selection processing dimensions are strictly in accordance with industry front-end standards and 6S, CE, TS, ISO9001, ISO14000, ISO18000, API, GB, standard implementation. Make each valve practical, long life, and bring high value to customers.
Product Overview - XURI Valve
This Stainless steel flanged check valve prevents reverse flow in piping systems. Available in carbon steel, stainless steel, and alloy materials. Class 150-2500, sizes 1"-36". API 594 compliant. Suitable for oil & gas, petrochemical, water treatment, and power plant applications.
Factory direct check valve supplier, OEM/ODM available for custom sizes and materials. ISO 9001 certified, API 594 compliant, fast delivery worldwide.
Product Features
1. The valve should be stored in a dry and ventilated room, and both ends of the valve channel should be blocked.2. Valves stored for a long time should be checked regularly to remove dirt. Special attention should be paid to the cleaning of the sealing surface to prevent damage to the sealing surface.3. Before installation, carefully check whether the valve mark conforms to the use requirements.4. Check the inner cavity and sealing surface of the valve before installation. If there is any dirt, it should be wiped with a cleaning cloth.5. Before installation, it should be noted that the valve direction mark is consistent with the flow direction of the medium.6. The lift-type vertical flap check valve should be installed on the vertical pipeline, and the lift-type horizontal flap check valve and the swing check valve should be installed on the horizontal pipeline.7. Pay attention to whether the valve has abnormal sound and vibration during use. In order to prevent the water hammer effect in the pipeline, pay attention to the fluctuation of the medium pressure in the pipeline. Why choose us?XURI High & Middle Pressure Valves Co.,Ltd.'s advanced design concept combined with precise CNC processing technology, the processing dimensions of each valve are strictly controlled within the tolerance range, and all structural design and accessories selection processing dimensions are strictly in accordance with industry front-end standards and 6 S, CE, TS, ISO9001, ISO14000, ISO18000, API, GB, standard implementation. Make each valve practical, long life, and bring high value to customers.
Available Configurations
- Sizes: DN15 - DN600 (1/2" - 24")
- Pressure Ratings: Class 150 - Class 2500 (PN16 - PN420)
- Body Materials: WCB, WCC, LCB, LCC, WC6, WC9, CF8, CF8M, CF3, CF3M, Duplex SS
- End Connections: Flanged (RF, RTJ), Butt Weld, Socket Weld, Threaded, Wafer, Lug
- Disc Types: Swing Check, Lift Check, Dual Plate, Tilting Disc, Piston Check, Ball Check, Nozzle Check
- Seat Materials: Metal Seat, Soft Seat (PTFE, PEEK, Nylon)
- Standards: API 602, ASME B16.34, BS 1868, API 6D
Specifications
| 公称通径 (Size/DN) | DN100 |
|---|---|
| 压力等级 (Pressure Rating) | PN16 |
| 阀体材质 (Body Material) | Stainless Steel (CF8, CF8M, 304, 316) |
| 适用介质 (Applicable Media) | Water, oil, gas, nitric acid, acetic acidDesign and Manufacturing |
| 连接方式 (End Connection) | Flanged |
| 驱动方式 (Operation Type) | Manual / Automatic |
| 应用领域 (Applications) | Petroleum, Chemical, Power |
