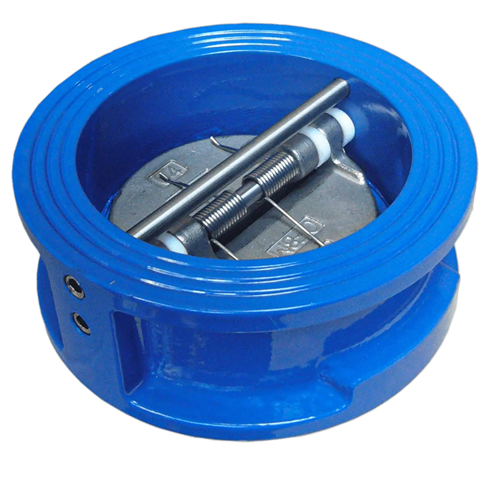

Butterfly Wafer Check Valve
Product Introduction Product Description butterfly wafer check valve is used to automatically open when media flows and then close when fluids flow backward. A check valve is also referred to as a one-way valve, a non-return valve, or a clack valve. Check valves have the ability to pass fluid in a s
Product Introduction
Product Description
butterfly wafer check valve is used to automatically open when media flows and then close when fluids flow backward. A check valve is also referred to as a one-way valve, a non-return valve, or a clack valve. Check valves have the ability to pass fluid in a single direction. Safety applications rely on this feature along with the capability to prevent overflow.
The opening design pressure of a check valve is the minimum pressure required upstream to open or operate. Customers can carefully match application requirements with many different types of valves.
butterfly wafer check valve Characteristics:
1. Short face to face dimension(only 1/4~1/8 of conventional flange check valve);
2. Small volume, light weight (1/4~1/20 of conventional flange check valve);
3. The disc closes rapidly,and has small water hammer pressure;
Can be used for horizontal pipe lines and vertical pipe lines.
4. Convenient utilization;
5. Free channel and small fluid resistance;
6. Excellent sealing;
7. Short stroke of valve disc and small impact force when closing valve;
8. Compact structure, beautiful modeling;
9. Long service life and reliability.
Product Specifications
butterfly wafer check valve is one of many check valve types. When selecting a check valve for process flow control, it is important to be familiar with the specifications. This helps ensure you get the right app for the app.
Stress test according to ISO 5208
Seat Test: 11bar (160psi.)
Body Test: 15bar (220psi.)
ANSI Class 150LB/PN10
Pressure Level
CL 125, CL 150, CL 300, CL 600
PN10, PN16, PN20, PN25, PN40, PN50
5K, 10K, 20K
Thickness: API 594, Manufacturer’s Standard.
Design: API 594, Manufacturer’s Standard.
Face to face: API 594, API 6D, ISO 5752, EN 558-1
Flange face standard: ASME B16.1, ASME B16.5, ISO 468
Inspection standard: API 598, ISO 5208.
Design Features
The streamlined channel
Swing valve
Oil the hinge pin / through a highe pin
The weight of the bar design
Type of valve | Check valve, etc. |
Standard of product | JB, HG, ANSI, DIN, and other non-standard. |
Size range | 2″~64″ (different valve type, different size, please call for details) |
Pressure range | Class 150Lb~Class2500Lb (different valve type, different pressure, please call for details) |
Material of body | Carbon steel, stainless steel, alloy steel, special steel etc. |
Material of rim | According to the medium |
More details, pls contact our sales department.
Comparison between Wafer Butterfly Check Valve and Conventional Check Valve
Structure | Wafer butterfly check valve | Conventional check valve |
Water hammer pressure | Small. Valve disc has short stroke. With assistance of spring, it can be closed rapidly. | Large. It needs long time to close for its long stroke. |
Size & Weight | Short face to face dimension, small volume, light weight | Long face to face dimension, large volume and heavy weight |
Fluid Resistance | Quite small; fluid drag coefficient: 2.6～0.7 | Quite small, fluid drag coefficient: 1.3~3. It cannot be opened |
Installing | Can be installed horizontally or vertically or vertically, without support for light weight. | Can be installed horizontally and vertically. |
Pressure | Quite low. The valve can be opened completely under low differential pressure. | High. Valve disc only can be opened completely with large differential pressure |
Reliability | Compact and simple structure | High impact fore and water hammer pressure cause damage to valve easily. |
Contact us today for a quote on our butterfly wafer check valve
Our butterfly wafer check valve model is a general purpose one-way flow valve. Compared with the swing valve, the butterfly wafer check valve has the characteristics of fast vertical and horizontal, air tight, stronger, lighter, smaller, and more reliable than the ordinary swing check valve.
Butterfly wafer check valve maintenance is easier due to the lighter weight and shorter face-to-face dimensions.
Not sure which check valve is best for your application? Contact us today for a custom quote.
Product Overview - XURI Valve
This Wafer butterfly check valve prevents reverse flow in piping systems. Available in carbon steel, stainless steel, and alloy materials. Class 150-2500, sizes 1"-36". API 594 compliant. Suitable for oil & gas, petrochemical, water treatment, and power plant applications.
Factory direct check valve supplier, OEM/ODM available for custom sizes and materials. ISO 9001 certified, API 594 compliant, fast delivery worldwide.
Product Features
1. Short face to face dimension(only 1/4~1/8 of conventional flange check valve);2. Small volume, light weight (1/4~1/20 of conventional flange check valve);3. The disc closes rapidly,and has small water hammer pressure; Can be used for horizontal pipe lines and vertical pipe lines.4. Convenient utilization;5. Free channel and small fluid resistance;6. Excellent sealing;7. Short stroke of valve disc and small impact force when closing valve;8. Compact structure, beautiful modeling;9. Long service life and reliability. Product Specificationsbutterfly wafer check valve is one of many check valve types. When selecting a check valve for process flow control, it is important to be familiar with the specifications. This helps ensure you get the right app for the app. Stress test according to ISO 5208 Seat Test: 11bar (160psi.)Body Test: 15bar (220psi.)ANSI Class 150 LB/PN10 Pressure Level CL 125, CL 150, CL 300, CL 600 PN10, PN16, PN20, PN25, PN40, PN505 K, 10 K, 20 KThickness: API 594, Manufacturer's Standard. Design: API 594, Manufacturer's Standard. Face to face: API 594, API 6 D, ISO 5752, EN 558-1 Flange face standard: ASME B.
Available Configurations
- Sizes: DN15 - DN600 (1/2" - 24")
- Pressure Ratings: Class 150 - Class 2500 (PN16 - PN420)
- Body Materials: WCB, WCC, LCB, LCC, WC6, WC9, CF8, CF8M, CF3, CF3M, Duplex SS
- End Connections: Flanged (RF, RTJ), Butt Weld, Socket Weld, Threaded, Wafer, Lug
- Disc Types: Swing Check, Lift Check, Dual Plate, Tilting Disc, Piston Check, Ball Check, Nozzle Check
- Seat Materials: Metal Seat, Soft Seat (PTFE, PEEK, Nylon)
- Standards: API 602, ASME B16.34, BS 1868, API 6D
Specifications
| 压力等级 (Pressure Rating) | PN10 |
|---|---|
| 阀体材质 (Body Material) | Stainless Steel (CF8, CF8M, 304, 316) |
| 适用介质 (Applicable Media) | Water, Oil, Gas, Steam |
| 连接方式 (End Connection) | Flanged / Wafer |
| 驱动方式 (Operation Type) | Manual / Automatic |
| 应用领域 (Applications) | Petroleum, Chemical, Power |
