Power Station Valve

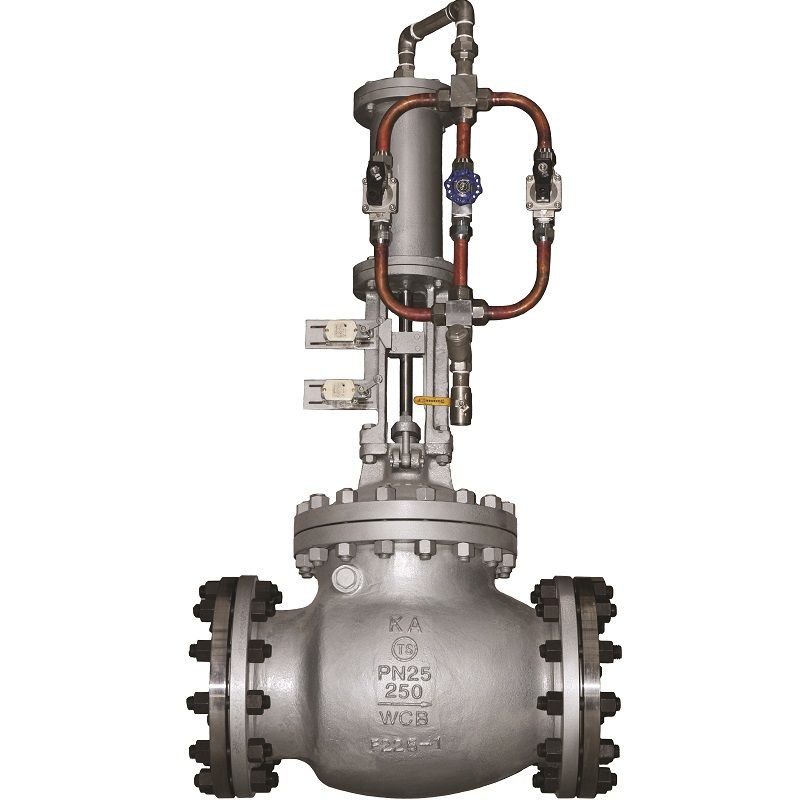

Extraction Valve Steam Turbine
Model: XURI-EXTRACTIONVA
| Pressure Rating | Class 150# ~ 2500# / PN10 ~ PN420 |
| Materials | Carbon Steel / Stainless Steel / Alloy Steel |
| Connection Type | Flanged / Threaded / Butt Weld / Socket Weld |
| Temperature Range | -196°C ~ 800°C (depending on material and design) |
| Standards | API / ANSI / ASME / DIN / BS |
Description
Installed in the extraction pipeline of 200MW, 300MW, 600MW and 1000MW units, once the pneumatic device components receive the gas reverse flow signal, it will act quickly to ensure that the valve is tightly closed, quickly isolate the steam turbine, and provide maximum protection to the steam turbine or steam extraction system.
Features:
• Manufactured in our ISO9001:2016 certified facilityn• Designed and tested to international standardsn• Full material traceability from mill test reportsn• Third-party inspections (SGS, BV, TÜV) welcomen• Comprehensive quality assurance at every stage
Need Technical Specifications or a Quote?
Our engineering team can provide detailed drawings, test reports, and customized solutions.
