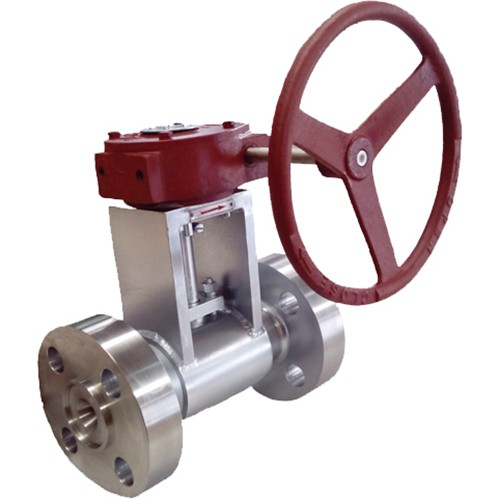

High Pressure Trunnion Ball Valve
Product Introduction
Trunnion ball valve is a quarter-turn rotational valve featuring a ball with a trunnion (fixed shaft) support at the top and bottom of the ball. Unlike floating ball valves where the ball is pressed against the seat by line pressure, the trunnion design mechanically supports the ball, allowing the valve to handle higher pressures and larger sizes with lower operating torque.
XURI trunnion ball valves are manufactured per API 6D and API 6A standards, suitable for oil & gas pipeline transmission, natural gas storage, refinery, and wellhead applications. The trunnion-mounted design provides stable operation at pressures up to Class 2500 and temperatures from -196°C to 450°C.
Key design features include double block and bleed (DBB) capability, emergency sealant injection fittings, anti-static devices, and fire-safe construction per API 607. The valve body is available in bolted or welded construction, with full bore or reduced bore configurations to match pipeline requirements.
Seat designs include single piston effect (SPE) and double piston effect (DPE) configurations for different sealing requirements. The trunnion ball valve can be equipped with manual gear operators, pneumatic actuators, or electric actuators for remote control applications.
Contact our sales team for application-specific recommendations and quotations.
Product Overview - XURI Valve
This Trunnion mounted ball valve provides reliable shut-off and flow control. Available in carbon steel, stainless steel. Class 150-2500, sizes 1"-48". API 6D certified. Fire-safe design available. Suitable for pipeline, oil & gas, chemical, and general industrial applications.
Factory direct ball valve manufacturer, API 6D fire-safe certified. OEM/ODM available for custom end connections. ISO 9001 certified, fast global shipping.
Product Features
- Trunnion-Mounted Ball: Fixed ball design with trunnion support reduces operating torque and ensures stable operation under high pressure.
- Double Block & Bleed (DBB): Simultaneous upstream and downstream sealing with body cavity bleed capability for safe maintenance.
- Emergency Sealant Injection: Standard sealant injection fittings for emergency seat sealing in critical applications.
- Fire-Safe Design: Certified to API 607 and API 6FA for fire-safe operation in refinery and gas plant services.
- Anti-Static Device: All valves equipped with anti-static springs between ball, stem, and body to prevent static charge accumulation.
- Low Emission Packing: Live-loaded stem sealing system meets ISO 15848-1 fugitive emission requirements.
Available Configurations
- Sizes: DN50 - DN600 (2" - 24")
- Pressure Ratings: Class 150 - Class 2500 (PN16 - PN420)
- Body Materials: WCB, WCC, LCB, CF8, CF8M, CF3, CF3M, Duplex 2205/2507
- End Connections: Flanged (RF, RTJ), Butt Weld (BW), Wafer Type
- Operation: Manual (Gearbox), Pneumatic, Electric, Hydraulic
- Seat Design: Double Piston Effect, Single Piston Effect, Double Block & Bleed
- Standards: API 6D, ASME B16.34, NACE MR0175, API 607, API 6FA
Specifications
| 公称通径 (Size/DN) | 2" - 48" (DN50 - DN1200) |
|---|---|
| 压力等级 (Pressure Rating) | Class 150 - 2500 (PN16 - PN420) |
| 阀体材质 (Body Material) | Carbon Steel (WCB/WCC), Stainless Steel (CF8/CF8M), Duplex Stainless Steel, Low Temp Carbon Steel (LCB) |
| 连接方式 (End Connection) | Flanged (RF/RTJ), Butt Weld (BW), Threaded |
| 驱动方式 (Operation Type) | Manual, Gear Operated, Pneumatic Actuated, Electric Actuated |
| 应用领域 (Applications) | Oil & Gas Pipeline Transmission, Natural Gas Storage, Refinery, Chemical Processing, Slurry Handling, LNG |
Our Advantage
XURI Valves manufactures high-quality trunnion ball valves per API 6D and ASME B16.34 standards. Our manufacturing facility is certified for quality management, and each valve undergoes full pressure testing per API 598. We offer complete material traceability, short lead times, and experienced engineering support for custom applications.
