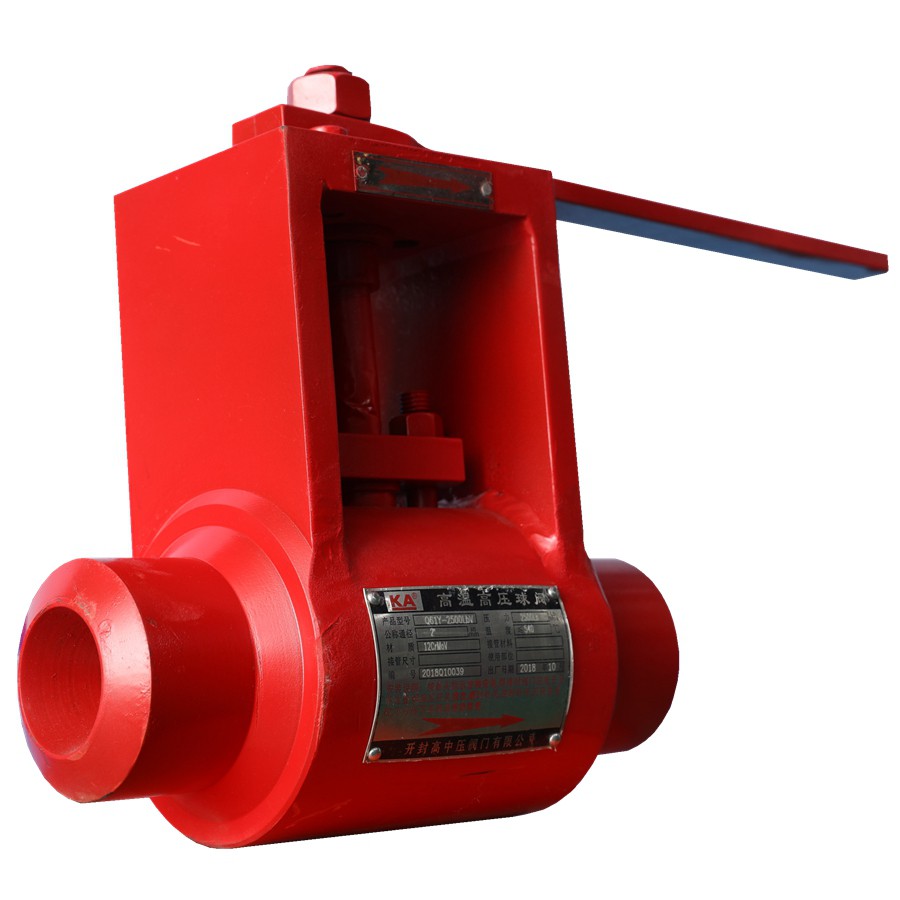

High Pressure Ball Valve
Product Introduction Description of high pressure ball valveHigh pressure ball valve, also known as hp ball valve, refers to a ball valve with nominal pressure PN ≥ 10.0Mpa-80.0Mpa. All high pressure ball valves can also be called 15000psi ball valves, 10000psi ball valves, etc. High-pressure ball v
Product Introduction
Description of high pressure ball valve
High pressure ball valve, also known as hp ball valve, refers to a ball valve with nominal pressure PN ≥ 10.0Mpa-80.0Mpa. All high pressure ball valves can also be called 15000psi ball valves, 10000psi ball valves, etc. High-pressure ball valves are mainly used to cut off or connect the medium in the pipeline, and can also be used to regulate and control liquids. The high pressure ball valve has the function of rotating 90 degrees. Ball valves are mainly used to cut off, distribute and change the flow direction of media in pipelines. As long as it is rotated 90 degrees, it can be closed tightly with a small torque. Ball valves are suitable for on-off and shut-off valves, but recent developments are ball valves designed for throttling and flow control, such as V-type ball valves.
Product Overview - XURI Valve
This High pressure ball valve provides reliable shut-off and flow control. Available in carbon steel, stainless steel. Class 150-2500, sizes 1"-48". API 6D certified. Fire-safe design available. Suitable for pipeline, oil & gas, chemical, and general industrial applications.
Factory direct ball valve manufacturer, API 6D fire-safe certified. OEM/ODM available for custom end connections. ISO 9001 certified, fast global shipping.
Product Features
1. According to the driving mode: motor actuated ball valve, pneumatic actuated ball valve, hydraulic actuated ball valve. 2. According to valve materials: such as carbon steel valves, alloy steel valves, stainless steel valves, cast iron valves, titanium alloy valves, Monel valves, copper alloy valves, aluminum alloy valves, lead alloy valves, etc. 3. According to the lining of the valve body: such as rubber-lined valves, fluorine-lined valves, lead-lined valves, plastic-lined valves, and enamel-lined valves. 4. According to the connection method, it can be divided into: threaded ball valve, flanged ball valve and plate ball valve.
Available Configurations
- Sizes: DN15 - DN200 (1/2" - 8")
- Pressure Ratings: Class 150 - Class 2500 (PN16 - PN420)
- Body Materials: WCB, WCC, LCB, LCC, WC6, WC9, C5, C12A, CF8, CF8M, CF3, CF3M
- End Connections: Flanged (RF, RTJ), Butt Weld (BW), Socket Weld (SW), Threaded (NPT)
- Operation: Manual, Pneumatic, Electric, Hydraulic
- Ball Type: Floating Ball, Trunnion Mounted Ball
- Seat Design: Soft Seated (PTFE, RTFE, PEEK), Metal Seated (Stellite, Tungsten Carbide)
- Standards: API 6D, ASME B16.34, ISO 17292, API 607 (Fire Safe)
Specifications
| 压力等级 (Pressure Rating) | PN16 ~ PN420 / Class 150 ~ 2500 |
|---|---|
| 阀体材质 (Body Material) | Carbon & Alloy Steel (WCB, WC6, WC9, A105, F91, F92) |
| 适用介质 (Applicable Media) | Water, Oil, Gas, Steam |
| 连接方式 (End Connection) | Flanged / Threaded / Welded |

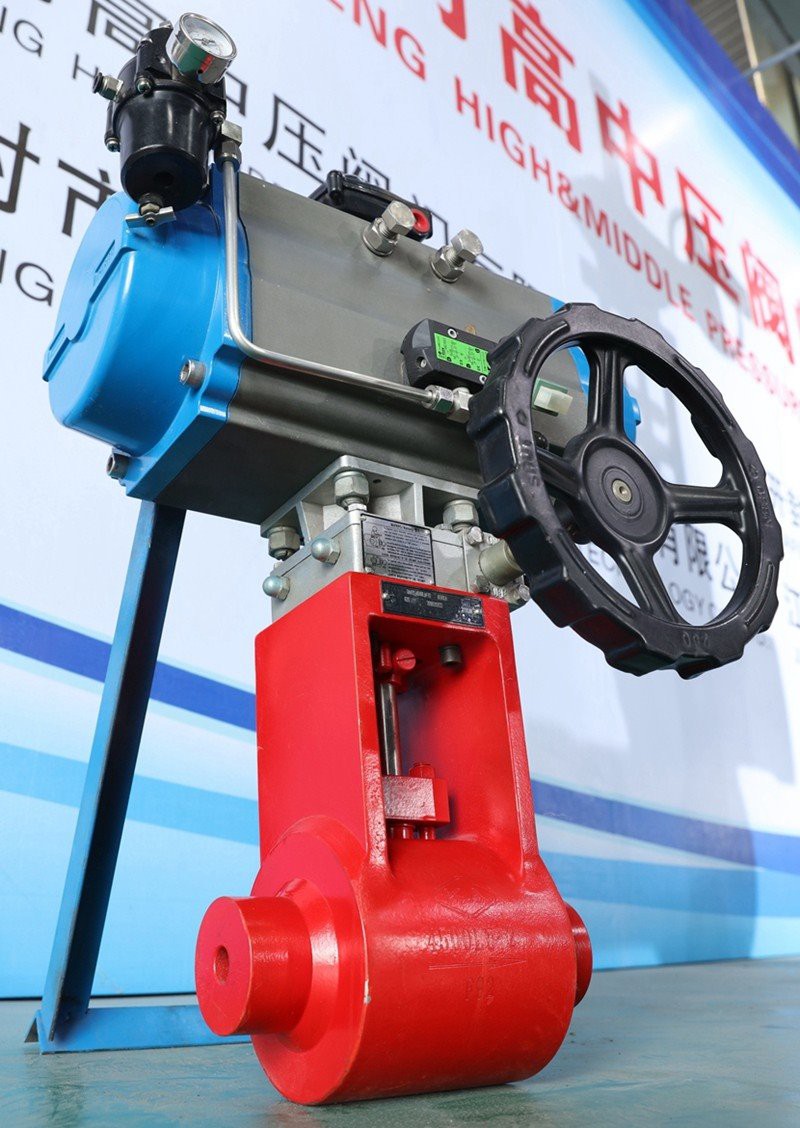

| 驱动方式 (Operation Type) | Pneumatic |
| 应用领域 (Applications) | Petroleum, Chemical, Power |
