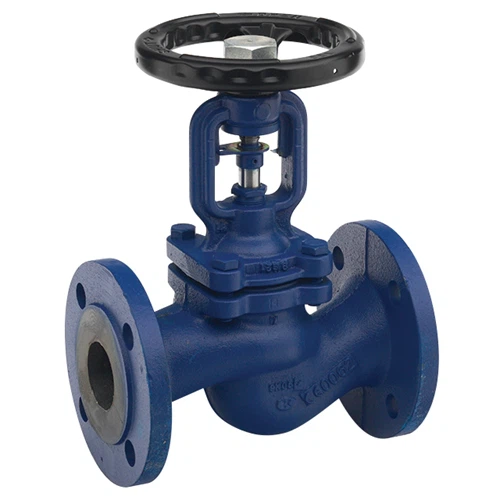

Heater Drain Control Valve
Product Introduction
Heater drain control valve is a specialized control valve designed for the severe service conditions of power plant feedwater heater drain systems. These valves must handle high pressure differentials, two-phase flow (flashing), and intermittent operation that cause rapid wear in standard control valves.
XURI heater drain valves feature multi-stage anti-cavitation trim that distributes the total pressure drop across multiple stages, preventing cavitation damage and extending valve service life. The trim geometry is specifically optimized for the high-pressure-letdown conditions found in high and low pressure feedwater heater drain applications.
Available in globe or angle body patterns, the valves are rated for Class 600 to 2500 service with carbon steel, alloy steel, or stainless steel bodies. Hardened trim materials including Stellite seat and plug faces provide erosion resistance in flashing and two-phase flow conditions.
The compact trim design minimizes actuator thrust requirements, reducing actuator size and cost. Each valve is custom-engineered for the specific application conditions including flow rate, inlet pressure, outlet pressure, and fluid temperature.
Please contact our power industry specialists for application engineering and selection assistance.
Product Overview - XURI Valve
This Heater drain control valve provides precise flow regulation for process control. Available with various trim options and actuator configurations. Suitable for oil & gas, chemical processing, power generation, and severe service applications requiring accurate modulation.
Factory direct control valve manufacturer, OEM/ODM custom trim available. ISO 9001 certified, fast delivery for process control and power generation projects.
Product Features
- Multi-Stage Trim: Specialized multi-stage pressure letdown trim protects against cavitation and erosion in high DP services.
- Two-Phase Flow Capability: Engineered for flashing and two-phase flow conditions common in heater drain applications.
- Anti-Cavitation Design: Pressure staging prevents cavitation damage across the full operating range.
- High Pressure Closure: Class 2500 rated body with hardened trim for extended service life in cyclic operation.
- Compact Actuation: Optimized trim sizing reduces actuator thrust requirements for lower capital cost.
- NACE Compliance: Materials available per NACE MR0175 for sour service heater drain applications.
Specifications
| 公称通径 (Size/DN) | 1" - 12" (DN25 - DN300) |
|---|---|
| 压力等级 (Pressure Rating) | Class 600 - 2500 (PN100 - PN420) |
| 阀体材质 (Body Material) | Carbon Steel (WCB/WCC), Alloy Steel (WC6/WC9), Stainless Steel (CF8/CF8M) |
| 连接方式 (End Connection) | Flanged (RF/RTJ), Butt Weld (BW), Socket Weld |
| 驱动方式 (Operation Type) | Pneumatic Actuated, Electric Actuated, Manual |
| 应用领域 (Applications) | Power Plant Feedwater Heater Drains, High Pressure Letdown, Two-Phase Flow, Boiler Feedwater Recirculation |
Our Advantage
XURI heater drain valves combine specialized trim technology with robust body construction for reliable service in power plant heater drain applications. Our valves are engineered for the severe two-phase flow conditions that cause rapid wear in standard control valves.
