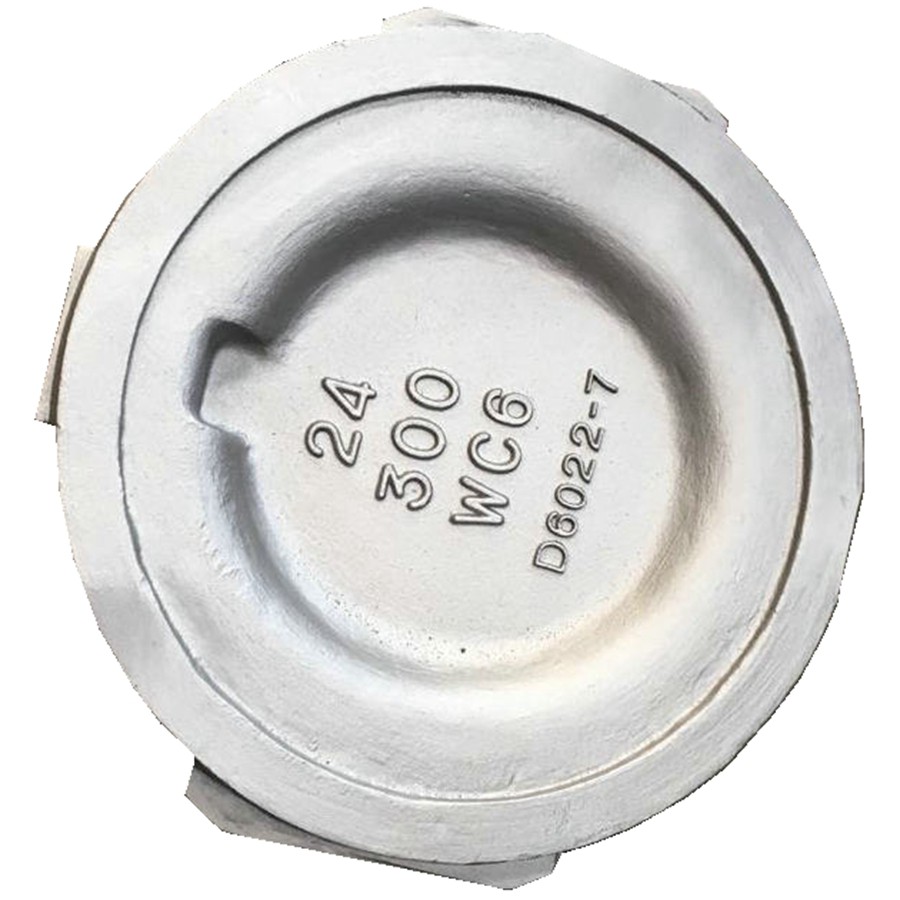

24 Inch 300bl WC6 Gate Valve Disc

Product Introduction

Gate valves are one of the most commonly used valves in various industries, and their design is critical to their operation. One of the key components of a gate valve is the gate valve disc, which is responsible for controlling the flow of fluid through the valve.

The gate valve disc is a flat or slightly concave disk-shaped component that is designed to fit snugly against the valve seat when the valve is in the closed position. The disc is typically made from a variety of materials, including stainless steel, cast iron, or brass, depending on the application and the fluid being transported.

When the gate valve is opened, the disc is lifted out of the valve seat, allowing fluid to flow through the valve. Similarly, when the valve is closed, the disc is lowered back into the valve seat, blocking the flow of fluid. The disc is typically operated by a stem, which is connected to a handwheel or motorized actuator.

One of the key benefits of a gate valve disc is its ability to create a tight seal when the valve is closed. This is important for preventing leaks or backflow of fluids, which can be dangerous and costly in certain industries. Additionally, the gate valve disc is able to withstand high pressures and temperatures, making it suitable for use in a wide range of applications.

There are several different types of gate valve discs, including solid wedge, flexible wedge, split wedge, and parallel slide discs. Each type of disc is designed to meet specific application requirements and has its own set of advantages and disadvantages.

In conclusion, the gate valve disc is a critical component of a gate valve and plays a key role in controlling the flow of fluid through the valve. Its ability to create a tight seal when closed and withstand high pressures and temperatures makes it a popular choice in a wide range of industries. By understanding the different types of gate valve discs and their respective strengths and weaknesses, engineers and technicians can select the best disc for their specific application.
