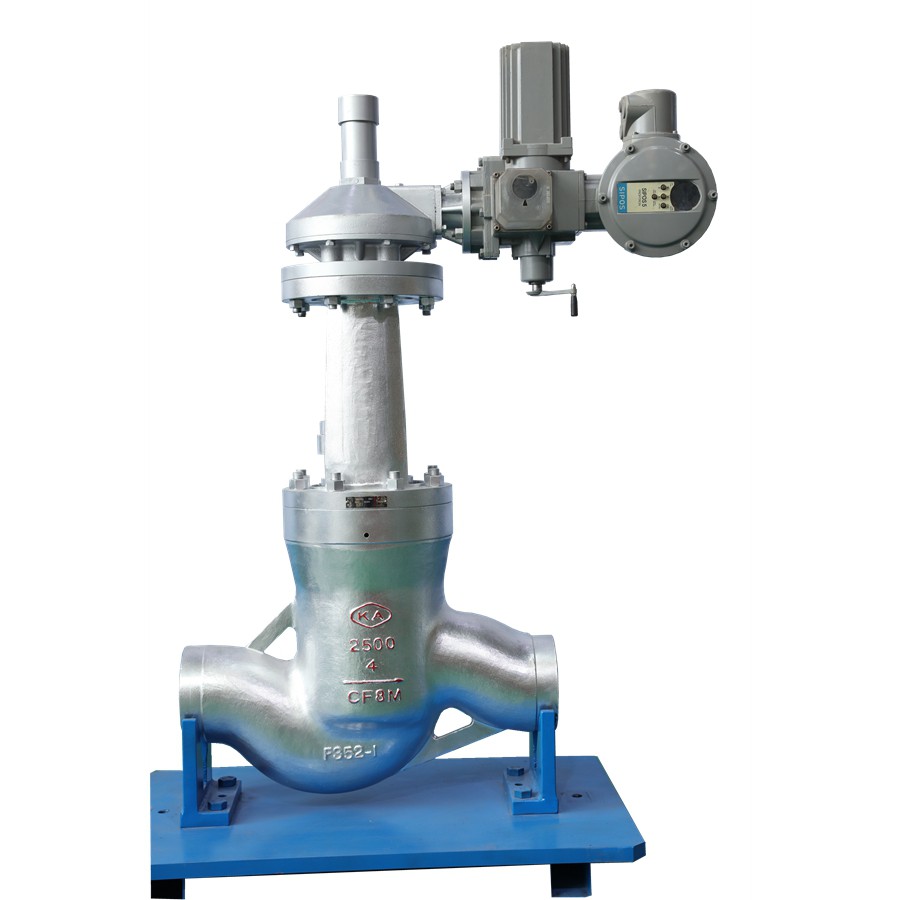

Special Trim Globe Valve
Product Introduction
Special trim globe valve is a globe-style control valve engineered with advanced trim technology for severe service applications involving high pressure differentials, cavitation, erosion, and noise generation. These valves incorporate specialized internal trim designs that modify the flow path to control pressure drop, reduce velocity, and eliminate cavitation.
XURI special trim globe valves are available with multiple trim configurations to meet different service requirements. Labyrinth trim uses a stack of disks with precisely machined flow channels to create a tortuous path that dissipates pressure energy in controlled stages. Channel trim uses multiple small flow passages to achieve the same effect. Multi-stage cage trim uses a series of pressure-reducing stages within a single cage assembly.
These trim technologies allow the valve to handle pressure differentials up to 400 bar without cavitation damage, reduce aerodynamic noise by up to 20 dBA, and provide tight shut-off with Class V or Class VI seat leakage. Common applications include high pressure drain systems, boiler feedwater recirculation, chemical letdown, and refinery high-pressure services.
Available in sizes from 1 to 16 inches with pressure classes from 600 to 2500LB. Body materials include carbon steel, stainless steel, and alloy steel with Stellite, tungsten carbide, or ceramic trim surfaces.
Contact our severe service engineering team for trim selection and application analysis.
Product Overview - XURI Valve
This Special trim globe valve provides precise flow throttling and regulation. Available in carbon steel, stainless steel, and alloy materials. Class 150-2500, sizes 1"-24". API 602 certified. Suitable for high-pressure steam, chemical processing, power generation, and general industrial applications.
ISO 9001 certified globe valve manufacturer, factory direct supply. OEM/ODM available for custom trim and materials. API 602 certified, fast delivery worldwide.
Product Features
- Anti-Cavitation Trim: Multi-stage labyrinth or channel trim designs that eliminate cavitation by controlling pressure drop across multiple stages.
- Low-Noise Trim: Aerodynamically engineered trim reduces fluid noise by up to 20 dBA compared to standard globe valves.
- High DP Capability: Capable of handling pressure differentials up to 400 bar (5800 psi) in a single valve body.
- Custom Trim Options: Labyrinth, channel, perforated plug, and multi-stage cage trims available for different service conditions.
- Severe Service Materials: Stellite, tungsten carbide, ceramic, and Inconel trim materials for erosion and corrosion resistance.
- Replaceable Seat Rings: Renewable seat rings extend valve service life and simplify field maintenance.
Available Configurations
- Sizes: DN15 - DN200 (1/2" - 8")
- Pressure Ratings: Class 600 - Class 2500 (PN100 - PN420)
- Body Materials: WCB, WC6, WC9, CF8M, A105, F22, F91
- End Connections: Flanged (RF, RTJ), Butt Weld, Socket Weld
- Operation: Pneumatic, Electric, Manual
- Special Trim: Multi-Stage Pressure Letdown, Anti-Cavitation, Low-Noise, High-Temp (up to 650C)
- Seat Leakage: Class IV, Class V, Class VI (FCI 70-2)
- Standards: IEC 60534, ASME B16.34, NACE MR0175
Specifications
| 公称通径 (Size/DN) | 1" - 16" (DN25 - DN400) |
|---|---|
| 压力等级 (Pressure Rating) | Class 600 - 2500 (PN100 - PN420) |
| 阀体材质 (Body Material) | Carbon Steel (WCB), Stainless Steel (CF8/CF8M/CF3M), Alloy Steel (WC6/WC9), Duplex Stainless Steel |
| 连接方式 (End Connection) | Flanged (RF/RTJ), Butt Weld (BW), Socket Weld |
| 驱动方式 (Operation Type) | Pneumatic Actuated, Electric Actuated, Manual, Gear Operated |
| 应用领域 (Applications) | High Differential Pressure Drain, Boiler Feedwater Recirculation, Heater Drain, Chemical Letdown, Severe Service Cavitation Control |
Our Advantage
XURI special trim globe valves are engineered for severe service conditions where standard control valves cannot survive. Our trim technology expertise covers the full range of anti-cavitation, low-noise, and high-pressure-letdown applications, backed by application engineering support and fast delivery.
