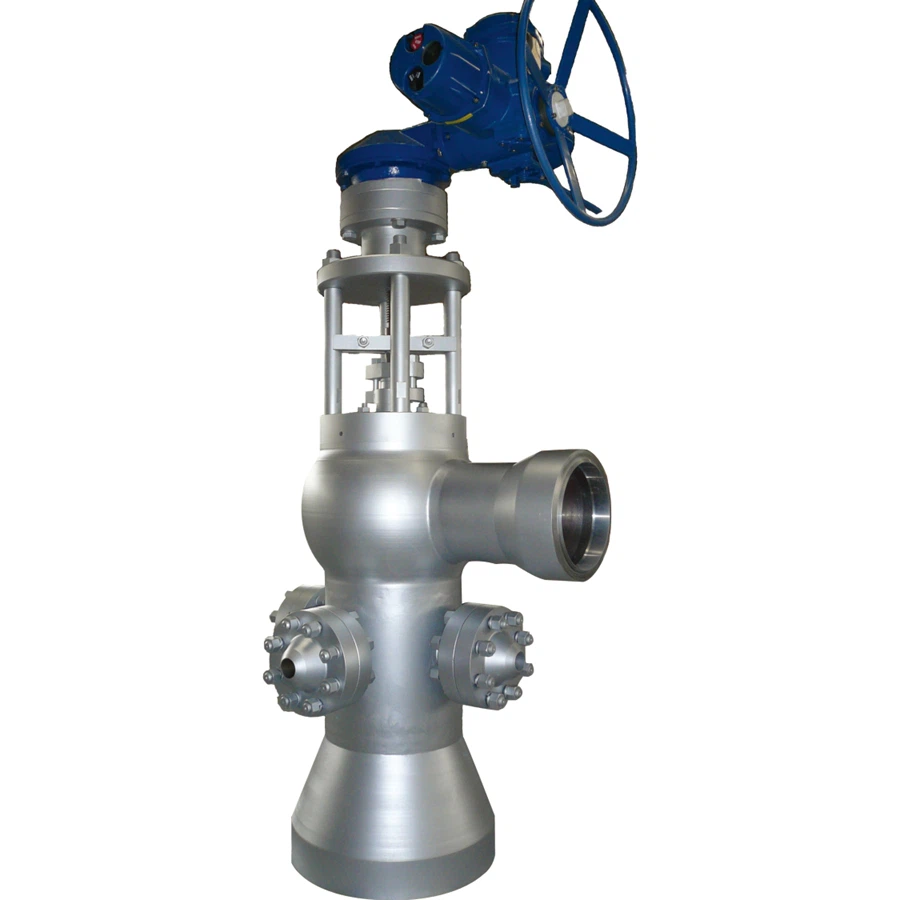

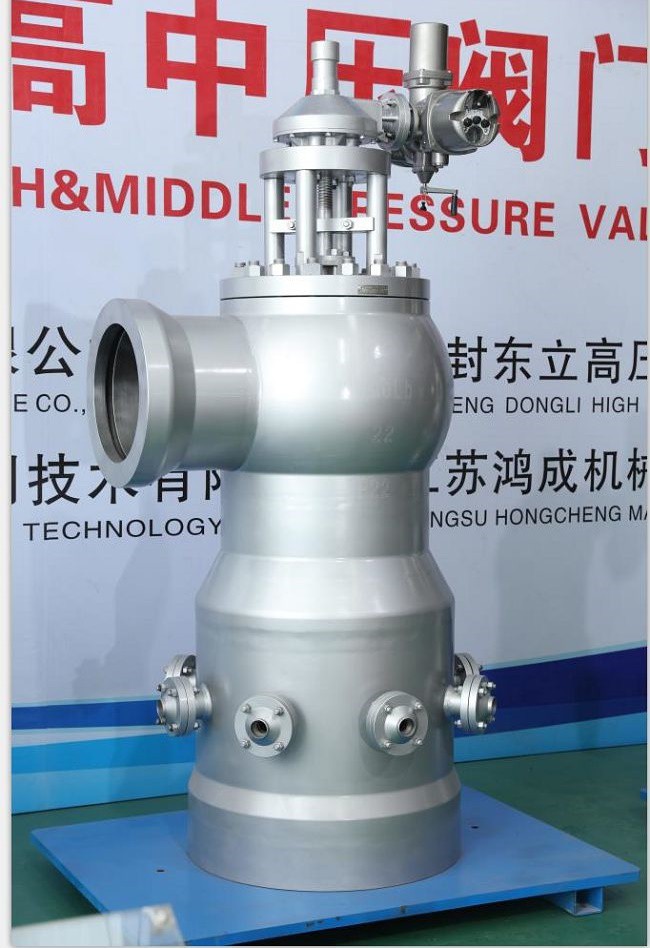

High Pressure Bypass Valve
Product Introduction What is High Pressure Bypass Valve？High Pressure Bypass Valve, also known as HP bypass valve, is a steam regulating valve.High pressure bypass valves are widely used in steam power systems to reduce pressure by throttling and saturating steam by periodic water injection, thereby
Product Introduction
What is High Pressure Bypass Valve？
High Pressure Bypass Valve, also known as HP bypass valve, is a steam regulating valve.High pressure bypass valves are widely used in steam power systems to reduce pressure by throttling and saturating steam by periodic water injection, thereby reducing critical steam parameters. The valve body of this high pressure bypass valve consists of two ball cavities with the largest outer diameter.Its main field of application is high pressure bypass systems for fossil fuel power plants in subcritical and supercritical steam conditions. With the range of valve body materials available, the High Pressure Bypass Valve can be used for the main steam pressures and temperatures of today’s most advanced thermal power plants. This valve is designed for cyclic operation of bypass systems. Equipped with hydraulic actuators and necessary safety controls, the valve can be used as a combined safety valve for high pressure bypass and superheater.
Product Overview - XURI Valve
Three-way or bypass valve for flow diversion and mixing applications. Available in various materials and pressure classes. Suitable for feedwater heater bypass, thermal power plant, and process flow switching applications requiring reliable flow path control.
Factory direct control valve manufacturer, OEM/ODM custom trim available. ISO 9001 certified, fast delivery for process control and power generation projects.
Product Features
4. What are the payment terms for our business?We will accept: T/T, L/C, Paypal, Alipay, Western Union, etc.5. Our standard export packing?For small orders: Pack each piece of plastic into a carton and put it in a woven bag. Large order: plastic packed into carton, then carton into plywood box.6. How to choose the delivery method?Small orders will choose express, airline. Large orders will be selected by sea. It will be according to customer's request.
Specifications
| 压力等级 (Pressure Rating) | PN16 ~ PN420 / Class 150 ~ 2500 |
|---|---|
| 阀体材质 (Body Material) | Carbon & Alloy Steel (WC6, WC9, F91, F92, A105, WB36, WCB) |
| 适用介质 (Applicable Media) | Water, Oil, Gas, Steam |
| 连接方式 (End Connection) | Flanged / Threaded / Welded |
| 驱动方式 (Operation Type) | Hydraulic |
| 应用领域 (Applications) | Petroleum, Chemical, Power |
