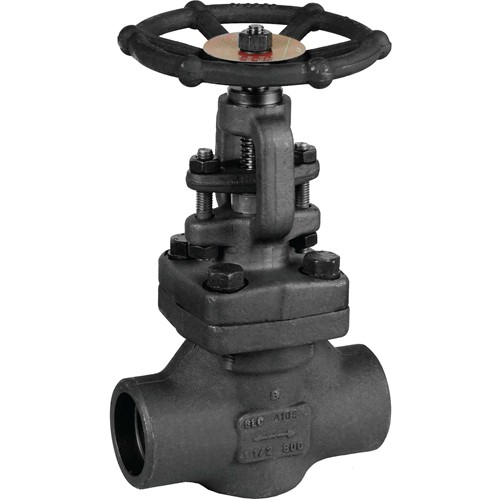

Weld Globe Valve

Description

Welding is a way of connecting valves. All globe valves that connect valves and pipes by welding can be called welded globe valves. Welding globe valves are divided into two types: socket welding globe valves and butt welding globe valves.

Features:
1. Fillet welds are formed by socket welding, and butt welds are formed by butt welding. The strength and stress condition of the butt welded seam are better than those of the socket, so the butt welding should be used in the occasions with high pressure level and poor service conditions.n2. Socket welding is generally used for small pipe diameters less than or equal to DN40, such as welding of small diameter valves and pipes, pipe fittings and pipes, which is more economical, and butt welding is generally used for DN40 and above.n3. Most of those with lower pressure rating and smaller diameter are socket welding, and those with higher pressure rating are often butt welding. And 100% flaw detection test is required for butt welding to ensure no leakage.n4. Socket welding requires a difference in diameter to insert welding, but there is no requirement for butt welding.n5. The requirements for butt welding are generally higher than those for socket welding, and the quality after welding is also good, so the testing methods are relatively strict. Butt welding is done with radiographic inspection, and socket welding is done with magnetic particle or penetration testing (such as carbon steel for magnetic powder, stainless steel for penetration).n6. Imported butt welding globe valve has double-layer bellows sealing device, zero external leakage;n7. Imported butt-welded globe valve stem, maintenance-free, long life; sealed by secondary packing to ensure double safety;n8. The external valve stem thread ensures its high temperature service life;n9. The handwheel is stamped by steel plate, which is durable, and the handwheel does not rise and fall when switching, so it is suitable for a relatively narrow space;n10. Throttle spool brings good adjustment performance;n11. In addition to packing, there are stainless steel bellows as sealing elements.n12. We have 17 years experiences in producing High and medium pressure valve, gate valve and related products. There are nearly 100 employees, including 20 engineers and 18 senior technicians.n13. It has domestic and foreign production and testing equipment, including γ-ray Co60 inspection room, resin sand molding line imported from Germany, 5 sets of 1-5 ton mid-grade furnaces, 6 5-30 ton full-fiber heat treatment furnaces, processing centers, CNC machine tools, ultra-low temperature impact equipment and German SPECTRO 45-channel direct-reading spectrum analyzer and other major advanced equipment; have high-end measurement testing, non-destructive testing, product technology and performance testing and other experimental facilities. It has achieved independent development from product design and development, model making, casting and forging production, machining, general assembly to performance inspection and testing.n14. According to American ANSI, ASME, API standards, Japanese JIS, E101 standards, British BS standards, design and manufacture of various personalized valve products, we can guarantee our products meet the requirements of your local market.n15. It has a complete and authoritative industry qualification certification system, and has obtained national special equipment manufacturing license certification (following the pictures of the formal test report), American Petroleum Institute API6D quality certification, EU CE product and material certification, ISO9001 quality assurance system certification, ISO14001 environmental management system Certification, OHSAS18001 occupational health and safety management system certification,We can do the certification as the requirements of your country.
