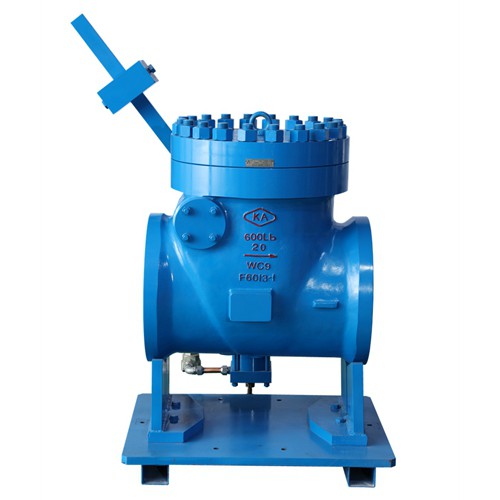

Swing Check Valve with Lever and Counterweight
Model: XURI-SWINGCHECKVA
| Pressure Rating | Class 150# ~ 2500# / PN10 ~ PN420 |
| Materials | Carbon Steel / Stainless Steel / Alloy Steel |
| Connection Type | Flanged / Threaded / Butt Weld / Socket Weld |
| Temperature Range | -196°C ~ 800°C (depending on material and design) |
| Standards | API / ANSI / ASME / DIN / BS |
Description
The swing check valve with lever and counterweight has good anti-shock effect due to the presence of the counterweight, and it will work automatically when the flow stops. These swing check valves are available for horizontal and vertical installations. For vertical streamline installations, we recommend rotating the counterweight 90° clockwise so that the counterweight will be in a horizontal position when the valve is ready for use.
Features:
• Manufactured in our ISO9001:2016 certified facilityn• Designed and tested to international standardsn• Full material traceability from mill test reportsn• Third-party inspections (SGS, BV, TÜV) welcomen• Comprehensive quality assurance at every stage
