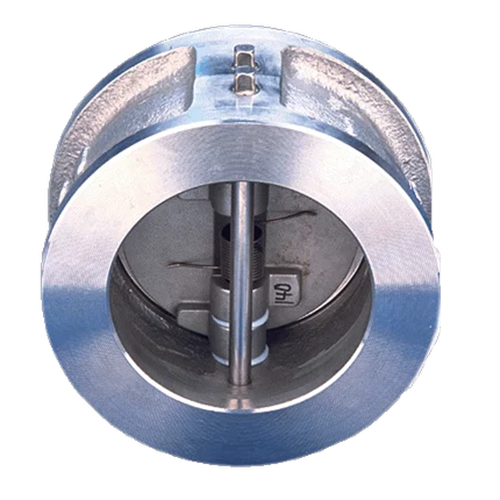

Double Disc Check Valve
Model: XURI-DOUBLEDISCCH
| Pressure Rating | Class 150# ~ 2500# / PN10 ~ PN420 |
| Materials | Carbon Steel / Stainless Steel / Alloy Steel |
| Connection Type | Flanged / Threaded / Butt Weld / Socket Weld |
| Temperature Range | -196°C ~ 800°C (depending on material and design) |
| Standards | API / ANSI / ASME / DIN / BS |
Description
The double disc check valve is a one-way valve, also known as double door check valve, double flap check valve or double plate check valve. It allows fluid to flow in one direction and cannot flow in the other direction. Check valves of various sizes, shapes and types are available, and they are usually self-adjusting, meaning that the flow of fluid itself often controls the opening and closing of the check valve.
Features:
1. There are pollutants attached to the sealing surfacen2. Remove dirtn3. The sealing surface is damagedn4. Rework and trim the sealing surface. If the welding layer of the sealing surface is not enough, re-surfacing or replace the valve seatn5. The sealing surface is worn out after long-term usen6. Re-surfacing the sealing surface or replace the valve seatn7. Uneven tightening of connecting boltsn8. Tighten the bolts evenlyn9. Damaged flange sealing surfacen10. Refinishn11. Cracked or failed gasketn12. Replace the gasket
